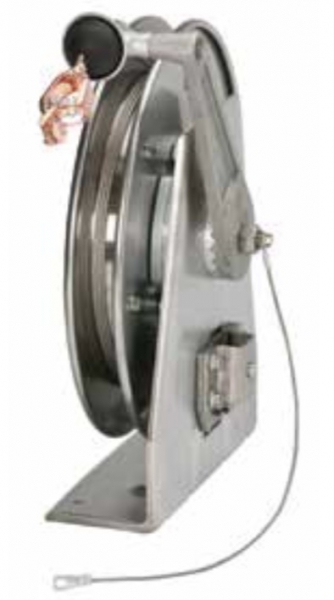

Hannay Static Grounding Reel, Stainless Steel
- These reels bond and/or ground aircraft, fuel trucks, and other equipment
- Provide smooth operation and require minimum cable pull
- Declutching arbor and adjustable guide arm with cable guide
- Optional stainless steel construction of spool, frame, and ratchet system available on HGR Series
- Standard finish is un-polished 304 Stainless Steel
- Cable guide arm of cast aluminum and ZA-12 aluminum zinc alloy
- Also available, manual rewind version
Cable Features:
- 304 Stainless Steel, 1/8" OD
- 100 amp Alligator Clamp
- Optional; cable “Y” branch
Series HGR:
- Sealed spring is a good economical choice that’s compact and lightweight
- A non-sparking ratchet assembly
- Reels are repairable and parts are readily available
- Supplied with 18" long grounding strap with eyelet connectors on both ends
Models Available| Model Number with full capacity of cable (-**) | Cable Capacity (ft. / m.) | Weight (Kg. bare reel) |
| SSHGR50-75 | 75 / 23 | 13 |
Commodity Codes| Grounding Reels | 8479899790 |
Download Hannay Static Grounding Reel, Painted Steel PDF
