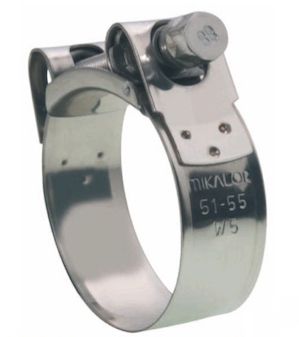

Mikalor Supra W5, High-Torque Hose Clamps, 316 Stainless Steel
  • Click to enlarge

Mikalor Supra W5, High-Torque Hose Clamps, 316 Stainless Steel

The Supra range is the natural evolution of the Super W1 clamp.

Due to its revolutionary swiveling bridge, the Supra W5 clamp can be mounted in the most awkward applications without having to remove the hose. Once mounted, it can be opened up and fastened again without dislodging or losing any of the other components of the clamp, making assembly much easier.

Thanks to the beveled edges, the hose is protected from damage.

The Supra W5 clamp complies fully with RoHs directive EU 2002/95/EC dated 1st July 2006.

The AISI 316 stainless steel bolt together with the captive nut and spacer system allow you to clamp the most demanding of assemblies.

Supra W5 is a full stainless steel clamp destined for demanding applications where very high corrosion resistance is vital.

This top of the range heavy-duty clamp is ideal for marine applications, foodstuff manufacture, pharmaceutical and petrochemical industries and other applications where AISI 316 stainless steel fittings are required.

The maximum application pressure can vary depending on the type of hose used and the geometry of the coupling.

Patented Worldwide.

Due to the small range of adjustment on these clamps it is important that you find the correct OD of your tube (including the stretching caused by fitting over a hose spigot) and buy the correct size of clamp.

  • W5 Band and Bridge: X5 Cr NI MO 17.12.2 (DIN 1.4401) (AISI-316) (A4)
  • Bolt: (AISI-316) Cu (A4) Stainless steel
Part NumberCommonly used for hose ID of:
SC 17-19
SC 20-22
SC 23-25
SC 26-28
SC 29-31
SC 32-35
SC 36-39
SC 40-43
SC 44-47
SC 48-51
SC 52-55
SC 56-59
SC 60-63
SC 64-67
SC 68-73
SC 74-79
SC 80-85
SC 86-91
SC 92-97
SC 98-103
SC 104-112
SC 113-121
SC 122-130
SC 131-139
SC 140-148
SC 149-161
SC 162-174
SC 175-187
SC 188-200
SC 201-213
SC 214-226
SC 227-239
SC 240-252


Download Mikalor Supra W5 - Datasheet PDFDownload Mikalor Supra W5 - Datasheet PDF
