Oilybits 7-35vDC Water Sensor
  • Click to enlarge

Oilybits DC Water Sensor

The Oilybits Water Sensor is a solid state device, which can sense the presence of water in a normally non-conductive environment, for example in the dry hull of a boat, or inside a tank full of diesel. Being solid-state with no moving parts, the sensor is extremely robust and resistant to vibration damage

The sensor also features integrated electronics which prevent accidental triggering, by utilising a time delay function, set to 5 second "Rising" level

Technical Specification
Supply Voltage 7-35vDC
Supply Current 1.5mA + Source Output
Max Load Current 1.0A Sink (switching an incoming signal), or 20mA source (using switches internal power)
Alarm Delay Time Standard 5 Seconds Rising (Factory Set - Can be set between 0-25 seconds, rising or falling, email if alternative to 5 seconds required)
Mounting Plane Horizontal
Connection 4 Way Delphi Packard Connector
Start Up Delay 2 Secs
IP Rating IP 67
Max Pressure 5 Bar / 72 PSI
Temp Range (Fluid) -40 to +130 Celcius
Weight 53 Grams
Thread Sizes Available 1/2"BSP Taper Male (Standard), 1/4"NPTF Male, 1/2"NPTF Male, M14x1.5 Male upon request
Materials
Probe PTFE
Body & Thread Brass
Seals NBR

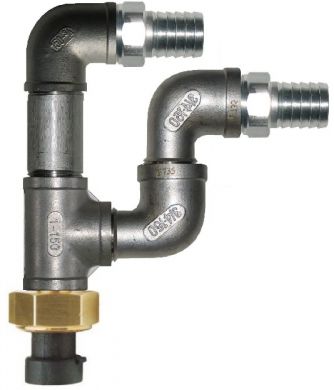

Shown Below: Using basic pipe fittings an inline sump can be formed, to use the device as protection against water ingress in a fuel supply line, as water is heavier than oil the oil will just agglomerate through the water and the engine will run normally, until such time that the water touches the sensor, triggering an auxillary alarm
