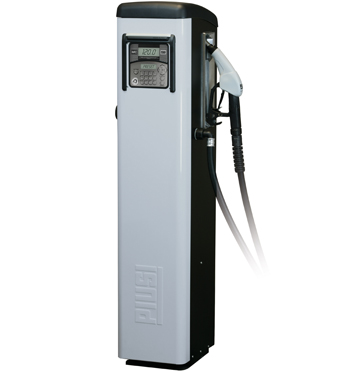

Piusi Self Service MC Adblue, Electronic Management System for Urea / Adblue
Self Service MC for AdBlue is a AdBlue dispenser specifically designed for non-commercial use.
The AdBlue dispenser has a sturdy structure with a hinged front door for easy component maintenance.
AdBlue transfer is possible thanks to the diaphragm pump, specially developed for the transfer of AdBlue, equipped with an electric motor without dynamic seals. The solution thus guarantees a reliable industrial pump with self-priming capabilities.
The AdBlue dispenser features the automatic SB325_X nozzle: ergonomic, reliable and heavy-duty, it is characterized by a stainless steel spout with Breakaway system, preventing potential damage from accidentally breaking off when the nozzle is still inserted in the tank of the vehicle.
The 3D filter, specific for AdBlue with high efficiency and progressive mechanical filtration, ensures complete preservation of the quality of the product dispensed. This solution thus extends functionality and the life of the catalyst.
Features a compact and lowered version for fitting directing on the tank with a versatile elctronic head. The dispensers compact and sturdy structure include easy access to the internal parts for maintenance with a hinged front door complete with lock.
The dispensers are equipped with
- A high capacity pump ensuring fast filling
- A high-precision meter
- 3D Adblue Filter
The electronic control is able to control up to 80 users, including by magnetic key. PC link up permits exporting performed dispensing operation data, to organise and control these according to need with the possibility of further transferring the data into a separate file
Performance Specifications
- Pre-selection dispensing +/- 0.5% precision within the flow-rate range
- Able to conrol 80 users
- Local memory up to the last 255 perfromed dispensing operations
- Possibility of entering vehicle registration number and kilometres (odometer)
- Dispensing date and time control
- Possibility of linking to PC and exporting data at a distance of up to 1000 m
- Minimum tank level pump stop
- Magnetic key for user recognition
Wetted Components| Pump Body | PP |
| Impellor Case | PP |
| Impellor Case Seal | TPU |
| Motor Shaft Seal | TPU |
| Vanes | Not Present |
| Vane Springs | Not Present |
| Rotor / Gear / Impellor | Not Present |
| Shaft Key / Nut | Not Present |
| Motor Shaft | Not Present |
| Bypass Valve Piston | Not Present |
| Bypass Valve Seal | Not Present |
| Bypass Valve Spring | Not Present |
Performance| Voltage / Frequency | 230v |
| kW | Various 0.90 - 1.55 |
| Amps | |
| RPM | 2900 |
| Duty Cycle | 20 Minutes |
| Cable Length | None |
| Bypass Valve Y/N | Y |
| Max Flow | 32 lpm |
| Discharge Pressure | 1.6 Bar |
| Max Suction Lift (Dry) | 3.0 m |
| Max Suction Lift (Wet) | 3.0 m |
| Inlet Fitting | 3/4" BSP |
| Outlet Fitting | TBC |
| Max Particle Tolerance | 100 Micron |
| Max Liquid Temp | 57°c |
| Min Liquid Temp | |
| Max Room Temp | 40°c |
| Min Room Temp | |
| Thermal Protection Y/N | Y |
| Max Liquid Viscosity | Adblue |
| Ingress Protection | IP55 |
Options Available| Single Phase 230v | Description | Filter Micron Rating | Meter | Pump | kW (230v) | lpm |
| F0074400A | Piusi Self Service MC Adblue | TBC | K24 Pulse | Suzzarablue | 0.40 | 32 |
Accessories| CTS4000 | Software Kit; Software Download, 1 License, 1 Manager Key, 10 Yellow User Keys, 1 USB Key Reader |
| CTS4001 | Software Kit; Software Download, 1 License, 1 Hardwire Kit for PC |
| CTS4002 | Software Kit; Software USB Stick, 1 License, 1 Manager Key, 10 Yellow User Keys, 1 USB Key Reader |
| CTS4003 | Software Kit; Software USB Stick, 1 License, 1 Hardwire Kit for PC |
| F00773210 | 1* Software Download & License |
| F00733010 | 1* Software USB Stick & License |
| F13292000 | 1* Hardwire Kit for PC |
| F12262001A | 1* USB Key Reader |
| R15904000 | 10* User Keys - YELLOW (Colour must match colour originally supplied with machine) |
| R12496000 | 1* Manager Key - RED |
Download Piusi Self Service MC Adblue - Brochure PDF
