Piusi Suzzarablue Pro / Basic, IBC Dispensing System, for Adblue / Urea
- Designed to be easily moved easily from one IBC to another
- Self-priming Suzzarrablue Diaphragm Pump in AC or DC, capable of delivering 34 lpm with a maximum output pressure of 1.6 Bar
- Suzzarrablue SB325 or A60 Inox, Automatic Dispensing Nozzles
- Optional K24 Urea Flow Meter
Wetted Components| Pump Body | Polypropylene |
| Diaphragms | Viton |
| Diaphragm Valves | TPU |
| Motor Shaft | Sintered (Stainless) Steel |
Performance| Part Number | F00201B1B | F00201C9B | F00201BAC | F00201A8B | F00201B2B | F00201E8B | F00201E7B | F00201A9B |
| Voltage | 230vAC50Hz1Ph | 230vAC50Hz1Ph | 230vAC50Hz1Ph | 12vDC | 230vAC50Hz1Ph | 230vAC50Hz1Ph | 230vAC50Hz1Ph | 12vDC |
| Pump Featured | Piusi Suzarablue AC | Piusi Suzarablue AC | Piusi Suzarablue AC | Piusi Suzzarablue DC | Piusi Suzarablue AC | Piusi Suzarablue AC | Piusi Suzarablue AC | Piusi Suzzarablue DC |
| Nozzle Featured | A60 Inox | Piusi SB325 | Piusi SB325 | A60 Inox | Piusi Suzzarablue Manual | Piusi SB325 | Piusi SB325 | Piusi Suzzarablue Manual |
| Hose Length | 6 m | 6 m | 6 m | 6 m | 6 m | 6 m | 8 m | 6 m |
| Max Suction Lift | 1.2 m (IBC) | 1.2 m (IBC) | 1.2 m (IBC) | 1.2 m (IBC) | 1.2 m (IBC) | 1.2 m (IBC) | 1.2 m (IBC) | 1.2 m (IBC) |
| Max Flow | 34 lpm | 34 lpm | 34 lpm | 34 lpm | 34 lpm | 34 lpm | 34 lpm | 34 lpm |
| Outlet Pressure | 1.6 Bar | 1.6 Bar | 1.6 Bar | 1.6 Bar | 1.6 Bar | 1.6 Bar | 1.6 Bar | 1.6 Bar |
| Max Viscosity | Urea/Adblue | Urea/Adblue | Urea/Adblue | Urea/Adblue | Urea/Adblue | Urea/Adblue | Urea/Adblue | Urea/Adblue |
| Internal Bypass | No | No | No | No | No | No | No | No |
| Adjustable Bypass | No | No | No | No | No | No | No | No |
| Power Kw | 0.4 | 0.4 | 0.4 | 0.26 | 0.4 | 0.4 | 0.4 | 0.26 |
| Max Liquid Temp | 55° | 55° | 55° | 55° | 55° | 55° | 55° | 55° |
| Max Room Temp | 40° | 40° | 40° | 40° | 40° | 40° | 40° | 40° |
| Ingress Protection | IP55 | IP55 | IP55 | IP55 | IP55 | IP55 | IP55 | IP55 |
| Weight | 16 Kg | 16 Kg | 16 kg | 12.6 Kg | 16 Kg | 16 Kg | 16 Kg | 12.6 Kg |

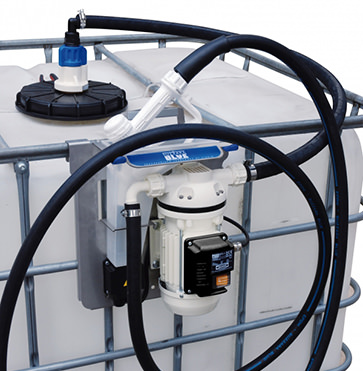

Shown Below, Piusi Suzzarablue Basic AC:

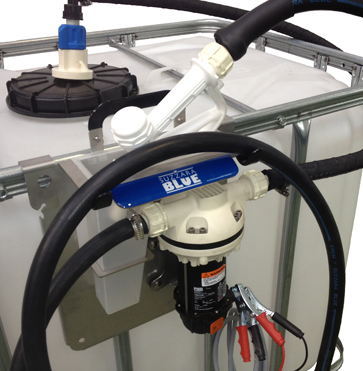

Shown Below, Piusi Suzzarablue Basic DC:

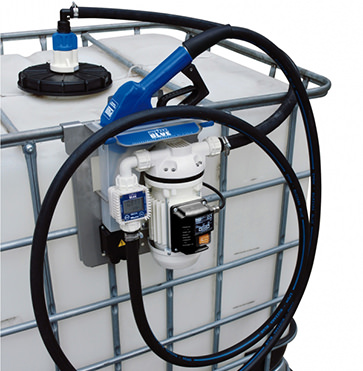

Shown Below, Piusi Suzzarablue Pro AC K24 Urea + A60 Inox Nozzle:

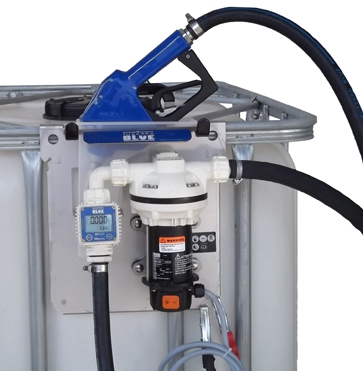

Shown Below, Piusi Suzzarablue Pro DC K24 Urea + A60 Inox Nozzle:

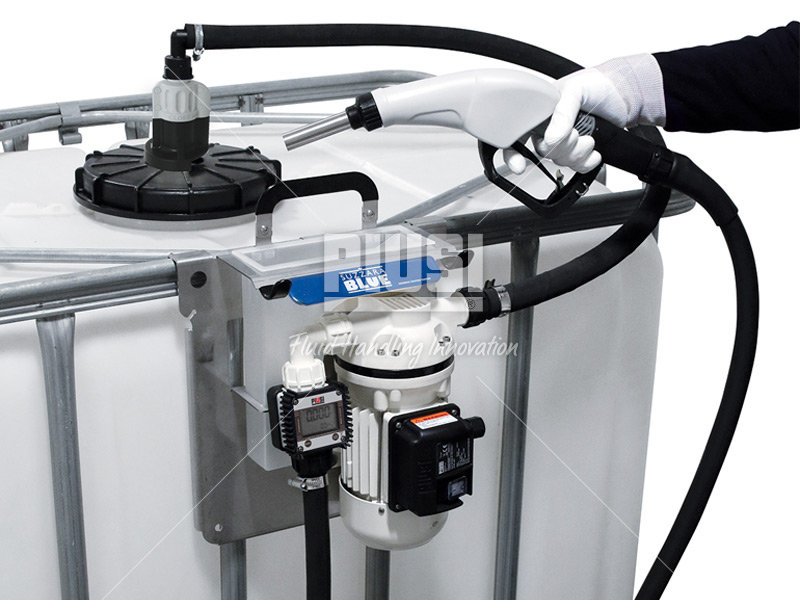

Shown Below, Piusi Suzzarablue Pro K24 Urea + SB325 Nozzle:
Download Piusi Suzzarablue Pro / Basic, IBC Dispensing Systems PDF
