Ramex, 304 Stainless, and Painted Steel, Spring Rewind Hose Reels
  • Click to enlarge

Ramex, 304 Stainless, and Painted Steel, Spring Rewind Hose Reels

Excellent quality, Stainless Steel, and Painted Steel Hose Reels with Spring Rewind.

304 Stainless Steel reels are highly resistant to corrosion and are popular for marine liquid transfer, such as Refuelling, or for Water, or for hosing down of clean areas

Can be fitted to the ground or to a wall, and an optional swivelling bracket enables the reel to point toward the direction that the user is retracting the hose, making it easier to use

The hose roller arm can be rotated through 45 degrees to adjust the direction in which the hose peels off

Hose NOT Included, please select suitable hose from our hose section, or email us for advice on what hose would suit your application, we sell an excellent Non-Marking refuelling hose for marine application, or a Polyeurethane lined hose for resistance to Water, Chemicals, or Bio Diesel products

Specification
ModelInlet FittingOutlet FittingMax Capacity of 3/4"ID HoseMax Capacity of 1"ID HoseReel MaterialWeightSuits Swivelling Wall Bracket
AV 12001" BSP Male1" BSP Male13 m8 m304, 303 Stainless21 kgST 20
AV 13001" BSP Male1" BSP Male18 m15 m304, 303 Stainless24 kgST 22
AV 35011" BSP Male1" BSP Male20 mNot Suitable304, 303 Stainless31 kgST 30
AV 60011" BSP Male1" BSP Male40 m30 m304, 303 Stainless51 kgToo Heavy for Bracket
AV 1200 FE1" BSP Male1" BSP Male13 m8 mPainted (Grey) Mild Steel<21 kgST 20 FE
AV 1300 FE1" BSP Male1" BSP Male18 m15 mPainted (Grey) Mild Steel<24 kgST 22 FE
AV 3501 FE1" BSP Male1" BSP Male20 mNot SuitablePainted (Grey) Mild Steel<31 kgST 30 FE
AV 6001 FE1" BSP Male1" BSP Male40 m30 mPainted (Grey) Mild Steel<51 kgToo Heavy for Bracket

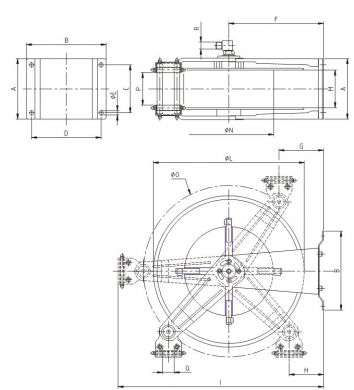

Dimensions
Part NumberABCDEFGHILMNOPQ
AV 1200 & FE22023218020413262505056043014026046012040
AV 1300 & FE4452334152051328511010058044028726047028040
AV 3501 & FE3102952802651331512010770054013531058010535
AV 6001 & FE5903455603121331512010770054039032058010535

Product Options

£278.00
