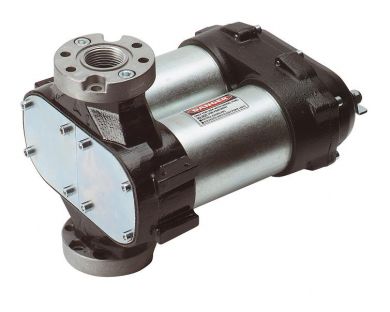

Piusi BiPump, DC Vane Pumps, 85 lpm

Product Information

Piusi BiPump, DC Sliding-Vane Pumps

A top quality Sliding-Vane pump, for use with Diesel & Bio Diesel

Wetted Components

Pump Body	Steel
Impellor Case	Cast Iron
Impellor Case Seal	Viton
Motor Shaft Seal	Viton
Vanes	Acetyl Resin
Vane Springs	Not Present
Rotor / Gear / Impellor	Steel
Shaft Key / Nut	Steel
Motor Shaft	Steel
Bypass Valve Piston	Acetyl Resin
Bypass Valve Seal	Viton
Bypass Valve Spring	Stainless Steel

Performance

Piusi Part Number	F0036301A	F0036303A
Voltage / Frequency	12vDC	24vDC
kW	-	-
Amps @ 12vDC	42	21
RPM	2000	2000
Duty Cycle	30 Min	30 Min
Cable Length	2 m	2 m
Bypass Valve Y/N	Y	Y
Max Flow (Open)	85 lpm	85 lpm
Discharge Pressure	1.25 Bar / 18.12 PSI	1.25 Bar / 18.12 PSI
Max Suction Lift (Dry)	3.5 m	3.5 m
Max Suction Lift (Wet)
Inlet Fitting	1" BSP + Flange	1" BSP + Flange
Outlet Fitting	1" BSP + Flange	1" BSP + Flange
Max Particle Tolerance	100 Micron	100 Micron
Max Liquid Temp	40 Celcius	40 Celcius
Min Liquid Temp
Max Room Temp	40 Celcius	40 Celcius
Min Room Temp
Thermal Protection Y/N	Y	Y
Max Liquid Viscosity	Diesel	Diesel
Ingress Protection	IP55	IP55

Download Piusi Bi Pump, High Flow DC Vane Pump - Technical Spec PDF

Download Piusi Bi Pump, High Flow DC Vane Pump - Manual PDF

Download Piusi Bi Pump, High Flow DC Vane Pump - Spares Exploded Diagram PDF

Product Options:

(All prices include VAT)

12vDC - (£327.00)
24vDC - (£327.00)

Product Code: PU014

Quantity: Add to Basket
