Location: Marine

Marine

Oilybits provide a wide range of equipment commonly utilised in the marine sector, this section serves as a basic guide to the ranges of products we offer, if you have specific requirements for equipment you are unable to locate on our website, then please do contact us for further information.

Marine Fuel Hose

Thor Carbopomp/M Marine Fuel Hose, for; petrol, diesel, biodiesel, eco-diesel, in full coil lengths.

Meets Boat Safety Scheme 2.10.2 - Applicability 'Hoses to ISO 7840'

Hoses dedicated for marine applications, with clear hose-markings to denote their suitability and approvals, where applicable. Particularly useful during vessel inspections as the assessor / surveyor can see clearly whether the hose in use is appropriately rated for the application.



Fuel Tank Breather Conservation Valve (Pressure & Vacuum Protection)

Anodised-aluminium Conservation Valve to prevent fuel vapours from escaping under normal operating conditions, this preserves the contents of the tank from evaporation to atmosphere, whilst protecting the tank from extremes of pressure / vacuum, the valve also protects the tank from excess contamination by moisture vapour which would otherwise enter the tank freely and condense internally, leading to water in fuel and associated problems such as fuel bug. Integrated Flame Arrester to BS EN ISO 16852:2016. 2"BSP Female, Opening Pressure (to tank) 2mb, Opening Pressure (to atmosphere) 35mb.

Meets Boat Safety Scheme 2.4.2p - 'Petrol tank vent outlets must be fitted with a suitable proprietary flame arrestor.'

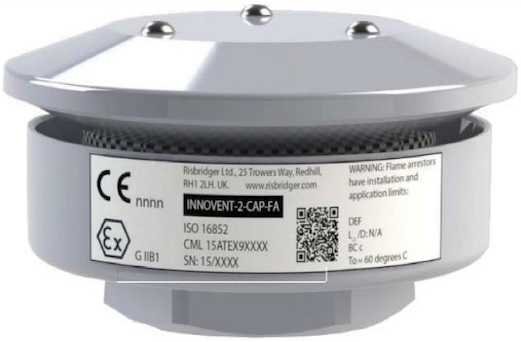

Fuel Tank Breather Vent Cap with Flame Arrester

Anodised-aluminium Vent Cap, protects the tank from ingress of rain. Integrated Flame Arrester to BS EN ISO 16852:2016. 2"BSPP Female

Meets Boat Safety Scheme 2.4.2p - 'Petrol tank vent outlets must be fitted with a suitable proprietary flame arrestor.'

Marine Waste Water Hose

Thor Marine Waste Water Hose, and Contitech/Merlett Vacupress Marine Waste in full coil lengths.

Hoses dedicated for marine applications, with clear hose-markings to denote their suitability and approvals, where applicable. Particularly useful during vessel inspections as the assessor / surveyor can see clearly whether the hose in use is appropriately rated for the application.



Ball-Check Valves for Sewage Lines

Pedrollo VR-FT (1.5"-2" Threaded) and VR-FF (2.5"-3" PN10 Flanged) Ball-Check-Valves for Sewage, Waste Water & Effluent.



Non Marking, Food Grade, Water Hose

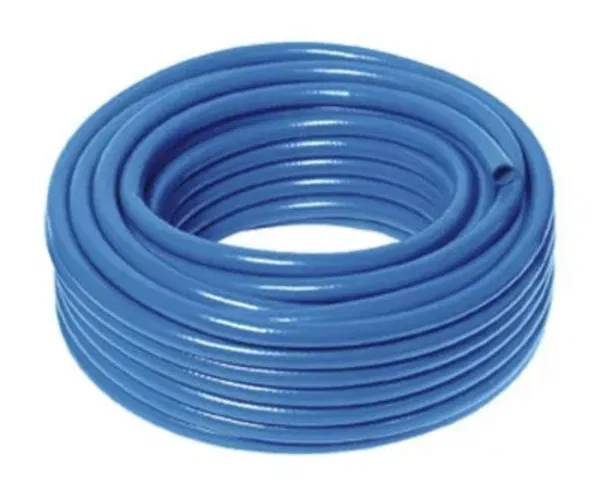

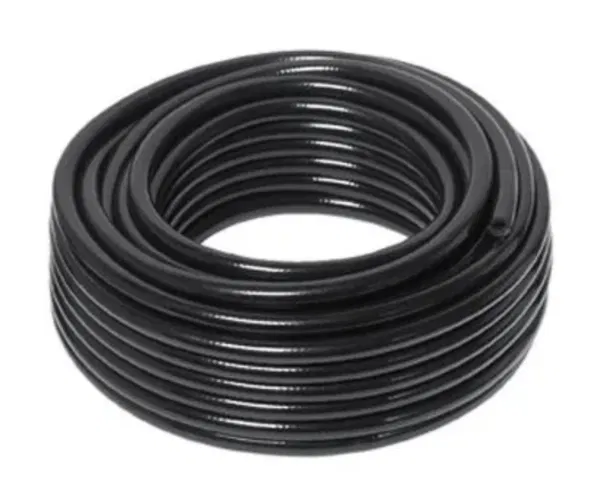

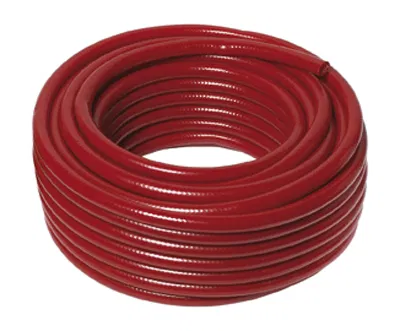

Tricoflex TCN, Polyester Fibre Reinforced, Food-Grade, Non-Marking, PVC Hoses, in Red, Blue, Black, and Clear.

Suitable for a multitude of uses aboard, such as; deck / wash down hoses, hot and cold water hoses, and shore to boat filling hoses.

With clear hose-markings to denote their suitability for food-use. Particularly useful during vessel inspections as the assessor / surveyor can see clearly whether the hose in use is appropriately rated for the application.

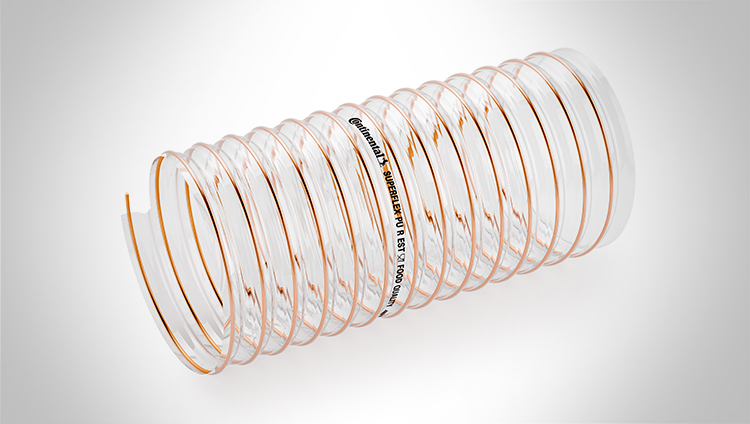

Ducting Hose, for Ventilation and Fume Extraction.

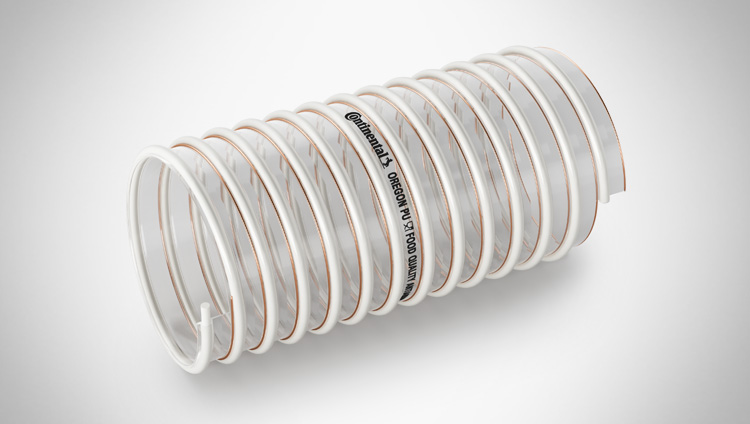

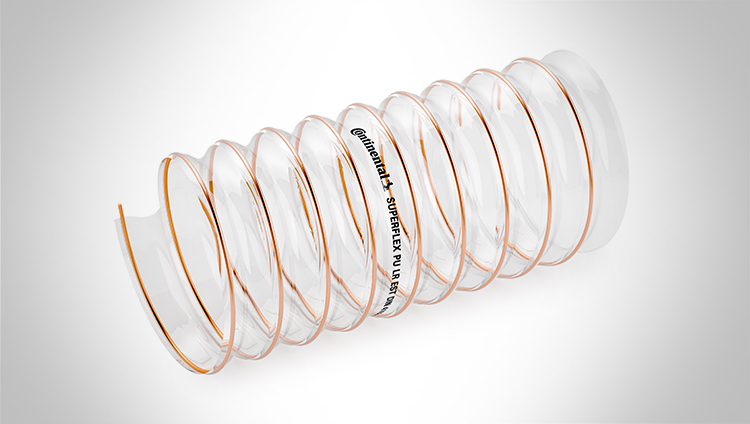

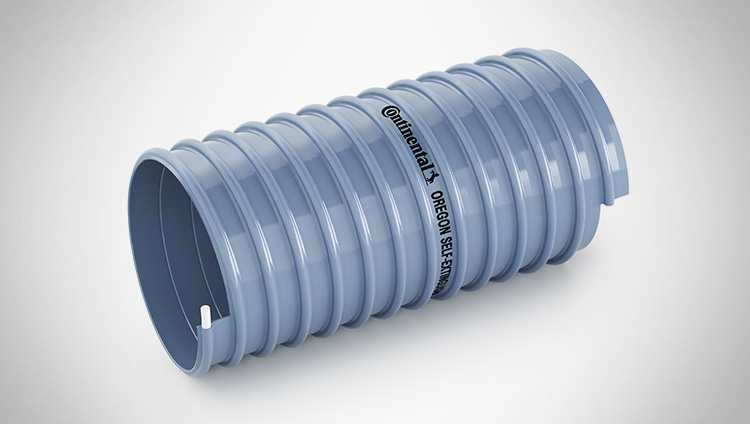

For onboard use we offer the range of smooth-bore ducting from Contitech/Merlett, with anti-static options where it may be required, such as fume extraction or engine room use.

PVC and PU/PVC hoses are more bulky, and almost twice the weight of PU.



Multi-Purpose, Pthalate Free PU, Steel Helix Reinforced Hose for Fuels, Oils and Drinking Water.

For general on-board use, as a loose hose, or as back-up hose, the Merlett Armorvin Total PU Oil TPHF - Phthalate-Free Clear Polyurethane Hose, with Steel Spiral hose is hard to beat, suitable for a multitude of uses from drinking and waste water to diesel and engine oil, it is a truly versatile product.

Not marked on the hose as suitable for any particular use.

Stainless Steel Hose Clips

AC Pumps for High-Pressure Reverse Osmosis Systems

Water Filters

We supply many brands of water filter, notably Pentek (U.S.A.), Spectrum (China), Aqua (Italy). The full range of water filter housings we sell can be found HERE, and elements HERE.

We recommend the Aqua FP3 9,3/4" Housing for general use onboard, this is available singly or with a dual or triple mounting bracket for multi-stage filtration.

Aqua also manufacture the FP3 9,3/4" AP-EASY sand filter which has an 80-micron nylon monofilament washable element and brass drain cock, sometimes this is used as the first filter in a multi-stage set-up.



A particularly useful element for applications off the mains (untreated) water, is the Spectrum EPE-AM-5-9,3/4, 5 Micron Pleated Anti-Microbial Filter Element, for 9,3/4" & 10" Housings.

Oil-Removing, Bilge Water Filters, 99% Effective

Spectrum OilOut-99 SRIF Filter Elements effectively remove oil from bilge water, preventing contamination of the waterway, these are available in a range of sizes, for appropriately sized filter housings; 9,3/4", 20", 30", 40", 9,3/4" Wide-Diameter, and 20" Wide-Diameter.

Meets Boat Safety Scheme 9.1.2 - 'discharge is through a bilge water filter capable of a 5ppm discharge performance ... as verified by ... an appropriate declaration from the manufacturer'

Pressure Gauges, Glycerine Filled, Stainless Steel Case

Reliable pressure gauges for use with oils and water, in a wide range of pressures, glycerine filled to prevent needle vibration, and with durable Plexiglass (Plastic) lens.



Fuel Filters with Water Removal

Cimtek spin-on steel canister fitlers, available in a range of sizes, but with CT70062 being the most popular model:

Meets Boat Safety Scheme 2.12.2 - Applicability 'all-metal fuel filters are accpeted as being sufficiently fire-resistant'

Fuel Purifiers

Oilybits offer a comprehensive range of high flow diesel fuel purifiers, featuring internal seperation baffles to cause water droplets to agglomerate and fall from the moving fuel. The purifiers can also be fitted with an optional water sensor to alert to the presense of water having risen to the point of the sensor location.

Meets Boat Safety Scheme 2.12.2 - Applicability 'all-metal fuel filters are accpeted as being sufficiently fire-resistant'

Free Water Detection

Gauging Pastes for the identification of free water in fuel storage tanks, some of the pastes we offer are:



Oil Level Gauging Pastes

In conjuction with a dipping rod, the user may use a proprietary oil level gauging paste to aid visual identification of the oil level. Oilybits supply a range of Oil Level Gauging Pastes;



Hose Swivels

Marine Breakaway Joints

Stainless Steel Pipe Fittings

Stainless Steel Hose End Couplings

Oilybits offer the Dixon Bate range of Aluminium, and 316 Stainless Steel Safety Clamps:

Stainless Steel, Self-Priming Fuel / Waste Oil / Sump Pumps AC/DC

German engineered, 316 Stainless Steel Flexible Impeller Pumps, for marine duty applications. These versatile pumps are at home pumping all manner of clean or contaminated liquids, from sea water and bilge waste, to thick dirty engine oil.

Stainless Steel, Self-Priming Fuel / Waste Oil / Sump Pumps - Power Drill Operated

Similar to above, the pumps are also available with a shaft drive, for connection to a portable battery operated drill, this way multiple pumps can be used around the vessel without hard wiring of electrics.



    Sea Water Pumps

    GMP Bronze pumps for the pumping of (screened) sea-water, these are particularly suitable for marine use, such as:

    • Sea Water Cooling / Circulation
    • Sea Water Pump Outs, Bilges etc.
    • Sea Water Ballast Tank Transfer
    • Sea Water Jet Bow/Stern Thrusters

    GMP, Self-Priming Centrifugal Pumps for Sea Water, Marine Bronze

    We also off the GMP Bronze pump connected to a HATZ 1B30 Diesel-Engine with a choce of starting options; Manual (Cord), 12vDC or 24vDC, this could be used for applications such as emergency pump outs / salvage.

    Fuel Pumps

    Pumps for bulk fuel transfer applications, many of which are ATEX approved and suitable for use with most flammable fuel oils.

    GMP, Self-Priming Bedplate Centrifugal Pumps, Cast Iron With Bronze Impeller (for Petrol), ATEX Approved

    Engine Oil Centrifugal Filters

    Meets Boat Safety Scheme 2.12.2 - Applicability 'all-metal fuel filters are accpeted as being sufficiently fire-resistant'

    Our excellent range of centrifuges is in use on military and cargo ship engines all over the world.

    Water Removing Polymer, SAP

    For one off, dockside, troublesome water removal, we sell a water absorbing powder, this is deployed in a weighted 50 micron nylon mesh bag, and retrieved with a string, it absorbs an incredible 130 times its own weight in water, yet, remarkably, it will not absorb any oil / fuel.

    Drop down water detector

    Battery operated drop-down water detector for use with Diesel, which will immediately alert to the presence of water in your fuel tank.

    Diesel Dipper

    The Diesel dipper has a built-in 12vDC self priming pump, water seperating baffles with a drain tap, and a washable strainer with clear plastic bowl to view fuel quality. The Diesel Dipper is connected to the fuel tank with a rigid drop tube which sucks from the dead bottom, ensuring all condensate, loose rust, fuel bug and other sunken detritis is sucked up, seperated from the fuel and the clean fuel returned to the tank.

    Stainless Steel Hose Reels

    Popular for marine-garage applicaitons, we offer Reelworks, 304 Stainless Steel, ATEX Approved Hose Reels.

    Fueling Nozzles

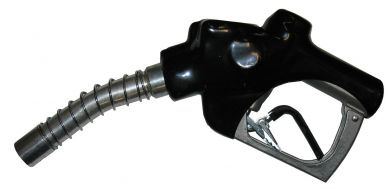

    Oilybits offer many fueling nozzles but one nozzle specifically designed for marine use (such as feulling of ribs / tenders) is the Husky VIII Offshore Nozzle, which has been specially developed for this application:

    Marine Waste Compactors

    Waste Compactor, 60 and 100 litre, available in 240 or 400v.

    Fuel Hose connectors

    Emco-Wheaton TODO-Matic self-isolating ATEX approved fuel hose connectors. Self Isolating connectors will not spill residual fuel when disconnected.

    For lower volume transfer, such as dockside or in a marine garage, the ATEX approved Piusi EX pumps are popular for both Petrol & Diesel transfer.

    Fuel Quality Assurance

    There are a number of different types of micro-organisms that can grow in certain types of fuel. The biggest problem is presented by a lamentous fungus called Hormoconis Resinae (H Res). Previously called Cladosporium Resinae, and more commonly referred to as “Diesel Bug”.

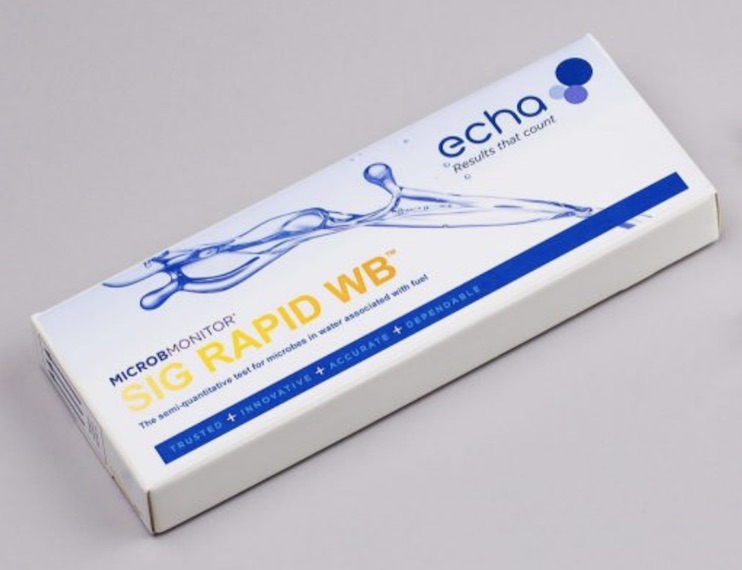

    ECHA Microbiology, Microbmonitor2, Microbial Culture Test Kits, are approved for use with Aviation Fuels and Non-Aviation Fuels, and are sold in packs of 5 or 50.

    This product might be chosen over Microbmonitor GMF for a vessel with helipad, so both fuels for the vessel and the helicopter could be tested with the same product.

    ECHA Microbiology, Microbmonitor GMF, Microbial Culture Test Kits, are approved only for use with non aviation fuels, and are sold only in packs of 50 (10 sleeves of 5 tests)

    Product Flow Metering

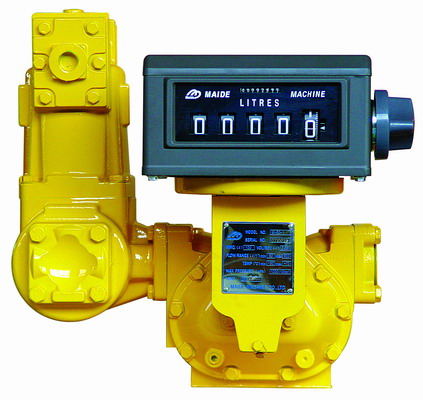

    For bulk transfer applications we offer the Maide Machine Co range of bulk transfer meters from 1.5" to 6" NB



    Engine Fuel Flow Metering

    Technoton DFM Marine Flow Meters, Painted Aluminium

    Technoton flow meters, these excellent meters are particularly suitable for marine application and carry a number of marine specific approvals, as well as some Russian waterway approvals. For pulse-out verisons there are 2 types of output, K - Pulse (Normalised), or CAN 2.0B Interface

    Technoton DFM Marine Flow Meters, Brass

    Technoton flow meters, these excellent meters are particularly suitable for marine application and carry a number of marine specific approvals, as well as some Russian waterway approvals. For pulse-out verisons there are 2 types of output, K - Pulse (Normalised), or CAN 2.0B Interface

    Aquametro CONTOIL Flow Meters

    The Aquametro range of flow meters is the go-to product for most marine specifiers. We also offer the /A high accuracy models, HERE



    Water Pumps

    Too great a range to list, Oilybits supplies many brands of water pump, most notably Pedrollo, GMP, and Ebara, the full index can be found HERE
