3/8 Inch Particulate Filters

Product Information

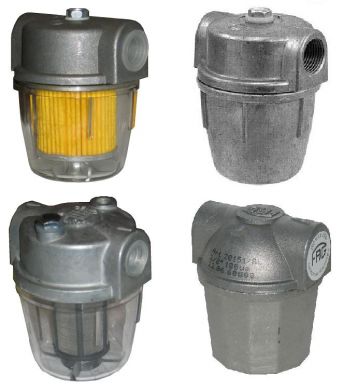

3/8" Particulate Filters

General purpose, cast-aluminium head filters for use with fuels and oils

The filter element is available in 15 Micron Paper (Disposable), or a 100 Micron (0.1mm) 304 Stainless Steel mesh, supported in a rigid nylon frame, this can be removed and washed thoroughly time and time again

The filter bowl is available in cast aluminium, or clear polycarbonate for visual inspection of the filter condition

Compression fittings can be found HERE, Screwed fittings can be found HERE

Thread sealant for your choice of inlet fittings can be found in our Sealants section, we recommend either PTFE HERE, or Heldite HERE

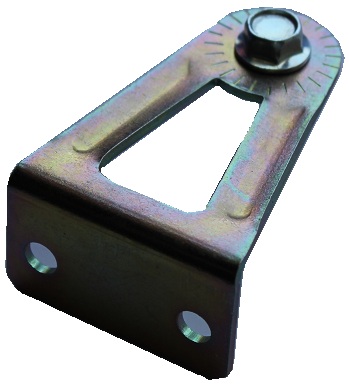

An optional mounting bracket is also available, shown here:

Made in Italy

General Specification
Micron Rating of Washable Stainless Steel Element	100
Micron Rating of Disposable Paper Element	15
Dispensing Means	Gravity or Pumped
Inlet / Outlet Fittings	3/8" BSP Female
Diameter	65 mm (Approximate)
Depth	75 mm (Approximate)
Flow Max	35 lph

Manufacturers & Part Numbers
Type	Manufacturer	Manufacturers Part Number	Max Temperature	Max Pressure	Replacement Filter Link
Clear Bowl, Paper Element	FAG	Unknown	50°c	Unknown	HERE
Clear Bowl, Stainless Steel Element	WASP PFS	W-4ST-38/01L	50°c	Unknown	HERE
Aluminium Bowl, Paper Element	WASP PFS	W-4STM-38/0010P	90°c	Unknown	HERE
Aluminium Bowl, Stainless Steel Element	WASP PFS	Unknown	90°c	Unknown	HERE

For all filters with screw-on bowls we always recommend the use of Silicon O'Ring Grease to aid tightening of the bowl, preventing pinching & scuffing and thus prolonging the life of the O'Ring

Product Options:

(All prices include VAT)

Bracket - £3.25 (£2.71 ex. VAT)
Clear Bowl, Paper Element - £8.45 (£7.04 ex. VAT)
Clear Bowl, SS304 Element - £8.93 (£7.44 ex. VAT)
Metal Bowl, Paper Element - £9.50 (£7.92 ex. VAT)
Metal Bowl, SS304 Element - £7.45 (£6.21 ex. VAT)
Super Lube O'Ring Grease - £3.95 (£3.29 ex. VAT)

Product Code: FI005

Quantity: Add to Basket
