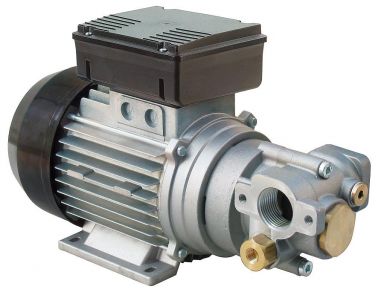

Piusi Viscomat, High-Viscosity Gear Pump

Product Information

Piusi Viscomat Gear, High-Viscosity Pumps

High-viscosity Gear pumps, designed specifically for use with Lubricating Oils & Vegetable Oils

Massive output pressure of up to 25 Bar / 362 PSI - Enough to give you 8 lpm at 250 metres head!

Three options available, see details below

Wetted Components
Pump Body	Cast Aluminium
Mechanical Seal	Viton
Gear	Sintered Steel
Motor Shaft	Sintered Steel

Performance - Viscomat Gear 200/2
Piusi Part Number	000304200	F0030403A	F00304050 (TBC)
Voltage	110vAC 60HZ (USA)	230vAC 50Hz (EU)	415vAC 50Hz (EU)
Max Suction Lift	0 m	0 m	0 m
Max Flow	9 lpm	9 lpm	9 lpm
Outlet Pressure	12.0 Bar / 174 PSI	12.0 Bar / 174 PSI	12.0 Bar / 174 PSI
Max Viscosity	2000 Centistokes	2000 Centistokes	2000 Centistokes
Internal Bypass	Yes	Yes	Yes
Adjustable Bypass	Yes	Yes	Yes
Power Kw	0.95	0.55
RPM	1730	1450
Max Liquid Temp	55°	55°	55°
Max Room Temp	40°	40°	40°
Ingress Protection	IP55	IP55	IP55
Ports - Viscomat	1" BSP Female	1" BSP Female	1" BSP Female
Weight	9 kg	9 kg	9 kg

Performance - Viscomat Gear 230/3
Piusi Part Number	F0030430A	F00304T40 (TBC)
Voltage	230vAC 50Hz	415vAC 50Hz
Max Suction Lift	0 m	0 m
Max Flow	14 lpm	14 lpm
Outlet Pressure	12.0 Bar / 174 PSI	12.0 Bar / 174 PSI
Max Viscosity	2000 Centistokes	2000 Centistokes
Internal Bypass	Yes	Yes
Adjustable Bypass	Yes	Yes
Power Kw	0.75
RPM	1450
Max Liquid Temp	55°	55°
Max Room Temp	40°	40°
Ingress Protection	IP55	IP55
Ports - Viscomat	1" BSP Female	1" BSP Female
Weight	12.5 kg	12.5 kg

Performance - Viscomat Gear 350/2
Piusi Part Number	000304110	F0030401A	000304T10 (TBC)
Voltage	110vAC 60Hz	230vAC 50Hz	415vAC 50Hz
Max Suction Lift	0 m	0 m	0 m
Max Flow	9 lpm	9 lpm	9 lpm
Outlet Pressure	25.0 Bar / 362 PSI	25.0 Bar / 362 PSI	25.0 Bar / 362 PSI
Max Viscosity	2000 Centistokes	2000 Centistokes	2000 Centistokes
Internal Bypass	Yes	Yes	Yes
Adjustable Bypass	Yes	Yes	Yes
Power Kw	1.5	0.75
RPM	1750	1450
Max Liquid Temp	55°	55°	55°
Max Room Temp	40°	40°	40°
Ingress Protection	IP55	IP55	IP55
Ports - Viscomat	1" BSP Female	1" BSP Female	1" BSP Female
Weight	12.5 kg	12.5 kg	12.5 kg

Download Piusi Viscomat, High-Viscosity Gear Pump - Catalogue Page PDF

Download Piusi Viscomat Gear Pump - Manual PDF

Download Piusi Viscomat Gear Pump - Spares Exploded Diagram PDF

Product Options:

(All prices include VAT)

200/2 110vAC 60Hz - (£318.00)
200/2 230vAC 50Hz - (£283.00)
200/2 415vAC 50Hz - (£283.00)
230/3 230vAC 50Hz - (£352.00)
230/3 415vAC 50Hz - (£352.00)
350/2 110vAC 50Hz - (£383.00)
350/2 230vAC 50Hz - (£352.00)
350/2 415vAC 50Hz - (£352.00)

Product Code: PU026

Quantity: Add to Basket
