Alptec, 316 Stainless Steel Earthing Clip, 28mm Jaws, ATEX Approved.
SPECIAL ORDER, PLEASE CONTACT US FOR MOQ & LEAD TIME
Heavy Duty Grounding / Earthing / Bonding Clamp for use in ATEX Zone 1 Areas.
- Stainless Steel 316 body.
- Stainless Steel spring.
- 3 Stainless Steel points in jaw.
- Strong spring pressure allows the 3 points to penetrate multiple layers of paint or corrosion build-up, so that proper contact is made.
- Suitable for grounding and bonding trucks and railcars.
- Each clamp is individually marked with the ATEX designation & CE Mark.
ATEX Designation: II 2G Ex h IIC T5 Gb
Specification| Part Number | SC-06 |
| Maximum Cable Diameter for Fixing Clamp | 12 mm |
| Jaw Opening | 28 mm |
| Length | 236 mm |
| Width | 93 mm |
| Weight | 510 g |
Below: Installation Diagram

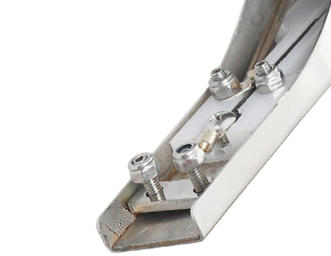

Shown Below; Cable Fixing Clamp
Commodity Codes| Clamps | 82032000 |
Download Alptec SC Series - ATEX Certificate PDF
