Alptec, Cast Aluminium Earthing Clip, 20mm Jaws, ATEX Approved.
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge

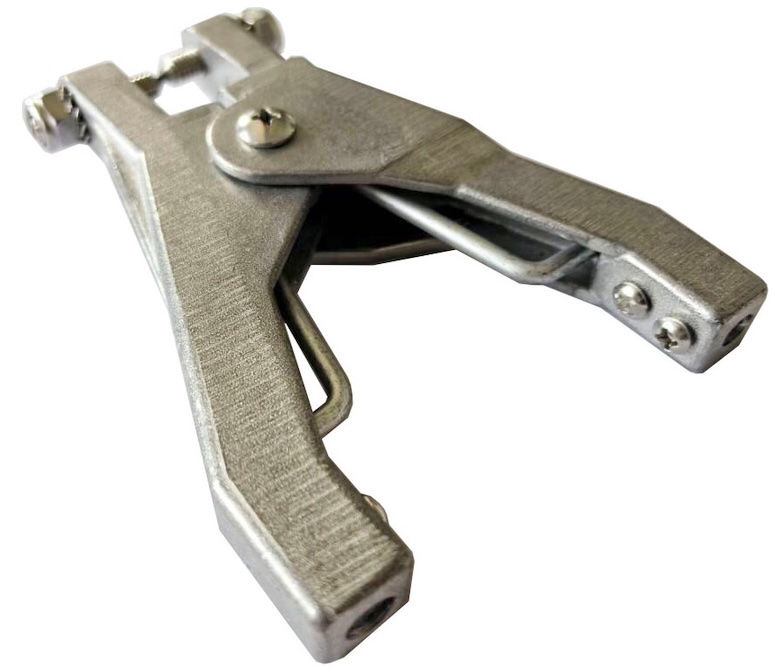

Alptec, Cast Aluminium Earthing Clip, 20mm Jaws, ATEX Approved.

SPECIAL ORDER, PLEASE CONTACT US FOR MOQ & LEAD TIME

Heavy Duty Grounding / Earthing / Bonding Clamp for use in ATEX Zone 1 Areas.

  • Die-Cast Aluminum body.
  • Stainless Steel spring.
  • 2 Stainless Steel points in jaw.
  • Strong spring pressure allows the 2 points to penetrate multiple layers of paint or corrosion build-up, so that proper contact is made.
  • Suitable for grounding and bonding a wide range of containers, drums and machinery.
  • Each clamp is individually marked with the ATEX designation & CE Mark.

ATEX Designation Ex II 2 G T6

Specification
Part NumberSC-01
Jaw Opening20 mm
Length112 mm
Width80 mm
Weight140 g

Below: Installation Diagram

Commodity Codes
Clamps82032000

Download Alptec SC Series - ATEX Certificate PDFDownload Alptec SC Series - ATEX Certificate PDF
