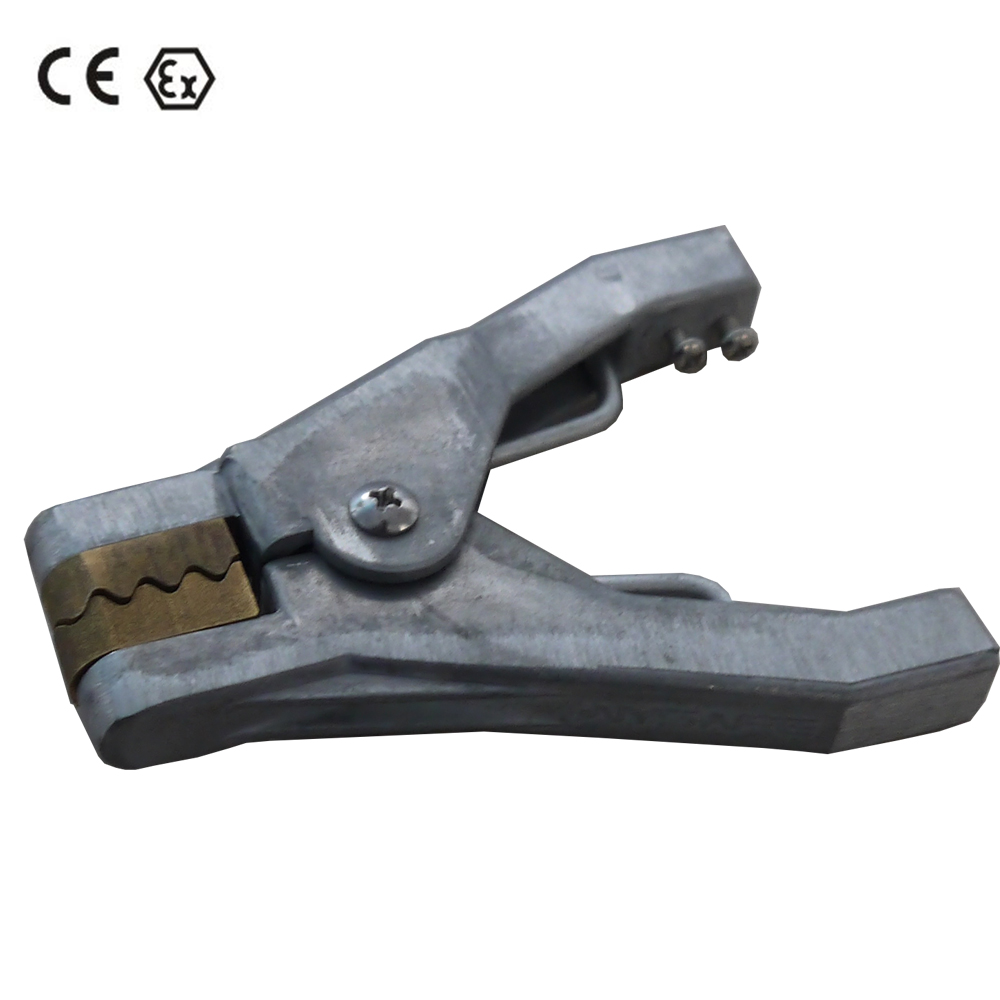

Alptec, Cast Aluminium Earthing Clip with Brass Jaws, 18mm Jaws, ATEX Approved.
SPECIAL ORDER, PLEASE CONTACT US FOR MOQ & LEAD TIME
Heavy Duty Grounding / Earthing / Bonding Clamp for use in ATEX Zone 1 Areas.
- Die-Cast Aluminum body.
- Stainless Steel spring.
- Brass Jaws with 4 interlocking points.
- Suitable for grounding and bonding trucks and aircraft.
- Each clamp is individually marked with the ATEX designation & CE Mark.
ATEX Designation: II 2G Ex h IIC T5 Gb
Specification| Part Number | SC-04 |
| Maximum Cable Diameter for Fixing Clamp | 6 mm |
| Jaw Opening | 18 mm |
| Length | 112 mm |
| Width | 80 mm |
| Weight | 160 g |
Below: Installation Diagram
Commodity Codes| Clamps | 82032000 |
Download Alptec SC Series - ATEX Certificate PDF
