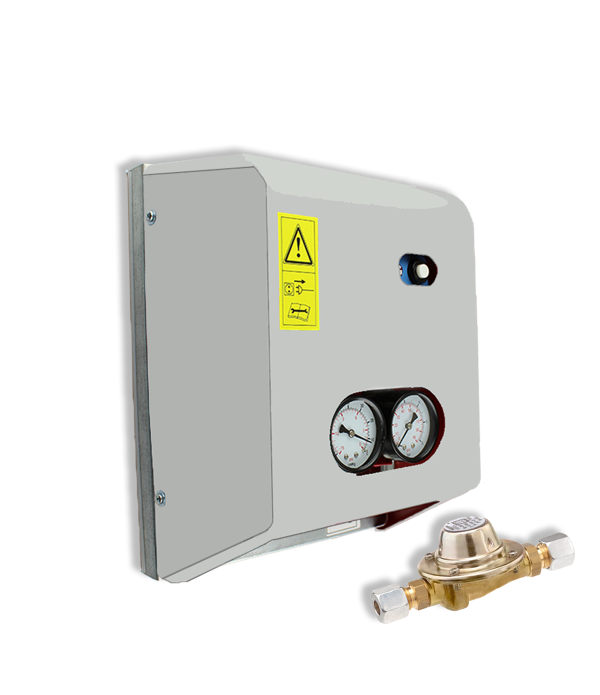

AN20 Heating Oil Transfer System with Single Pump
- The AN20 will suck the oil out of the oil tank and then pump it to the Oil Burner/Cooker/Appliance
- Maximum flow 20l/hr. For suction lift details see graph on the datasheet.
- A Pressure Reducing Valve/Pressure Regulator is supplied with the unit and 1 must be fitted just before each appliance.
- The unit is automatically operated by means of a Pressure Switch, which is starting the pump at 1,5 bar and stopping at 2,5 bar: this ensures the burner / appliance(s) fuel supply at all time.
- The Pressure Switch has also a low pressure safety - below 0,8 bar- which protects the installation/pump in case of a leak in the oil pipe/complete loss of pressure
- There is a High Pressure Safety valve which protects the pump/installation in case of a blockage in the oil pipe.
Specification| Pump Type | TBC |
| Lifting Height (Max) | 7 m. vertical (Max 12m of 10 mm I.D. tube, 2 Bar Delivery) |
| Horizontal Distance (Max) | 60 m. horizontal (Max 1m lift, 10 mm I.D. tube, 2 Bar Delivery) |
| Outlet Flow Rating | 20 l/hr at: mimum lift & horizontal |
| Inlet Connection | 3/8“ F BSP |
| Outlet Connection | 3/8“ F BSP |
| Overflow Outlet connection | None |
| Power Supply | AC 230V, 50Hz |
| Power Consumption | 1.38 Amps |
| Reservoir Capacity (Full) | None |
| Dimensions (W x D x H) | 240 x 330 x 205 mm |
| Weight (Empty) | 6.4 Kg. |
| Fuel Type | Kerosene & Diesel Oil |
Download AN20 Heating Oil Transfer System with Single Pump - Manual PDF
Product Options
£1,130.00
| Product Code | AN20 |
| Condition | New |
