Aqua BIG, 9,3/4" Polypropylene Filter Housing

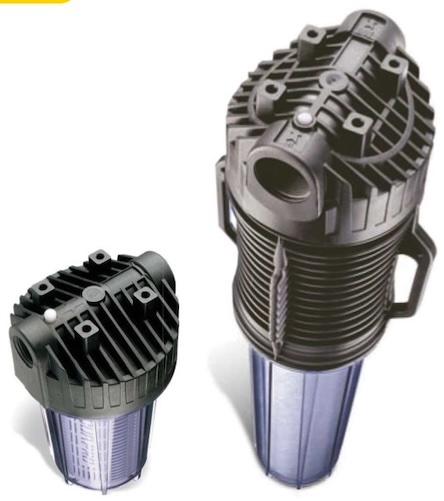

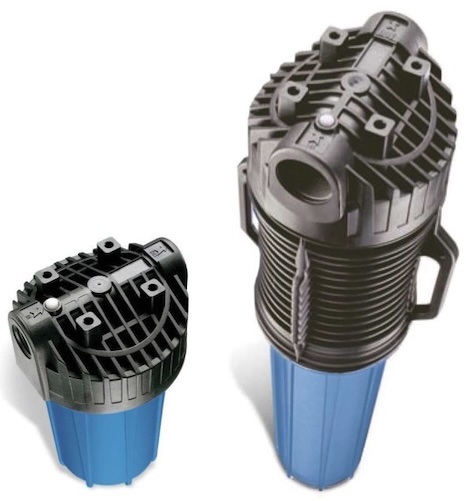

Aqua BIG Housings are constructed from Polypropylene (Head) with either a Transparent 'Styrene Acrylonitrile Resin' (SAN) bowl, or a Blue Polypropylene Bowl.
- Transparent 'Styrene Acrylonitrile Resin' (SAN) bowl, or a Blue Polypropylene Bowl.
- Without Brass Inserts
- NBR/Buna-N Bowl O-ring, 70-Shore
- Air release button, with NBR/Buna-N O-ring, 70-Shore
- WRAS and PED compliant
- Optional Spanner
- Optional Mounting Heads, Single, Double, or Triple
NO FILTER ELEMENT SUPPLIED, PLEASE ORDER THESE SEPERATELY HERE
Features| Dispensing Means | Gravity or Pumped |
| Standard Filter | 9,3/4", 10" |
| Inlet / Outlet Fittings | 1", 1,1/2" BSP |
| Size | (1"BSP) 343mm Deep, 185mm Diameter
(1,1/2"BSP) 353mm Deep, 185mm Diameter |
| Max Flow (No Element) | (1"BSP) 106 LPM at 2 Bar, Water.
(1,1/2"BSP) 194 LPM at 2 Bar, Water. |
| Max Working Pressure. | 8 Bar |
| Breaking Pressure, Average. | 25 Bar |
| Min/Max Temp | +5 to +50 Celcius |
Product Options| Aqua Part Number | Description | Standard Seal Material | Housing Length | Fitting Size | Air Release Button |
| A1050120 | Clear, 1" BSP, With Air Release | NBR | 9,3/4" | 1" BSP Female | Yes |
| A1050130 | Clear, 1,1/2" BSP, With Air Release | NBR | 9,3/4" | 1,1/2" BSP Female | Yes |
| A1050180 | Blue, 1" BSP, With Air Release | NBR | 9,3/4" | 1" BSP Female | Yes |
| A1050240 | Blue, 1,1/2" BSP, With Air Release | NBR | 9,3/4" | 1,1/2" BSP Female | Yes |
| A6010090 | Plastic Key qua BIG (Spanner), Black PP | | | | |
| PN020100 | Bracket Aqua BIG (Single Filter), Zinc Plated Steel | | | | |
| PN020040 | Bracket Aqua BIG (Double Filter), Zinc Plated Steel | | | | |
Optional Fitting Bracket Pictured Below;
Download Aqua BIG - Datasheet PDF
Download Aqua BIG Accessories - Datasheet PDF
