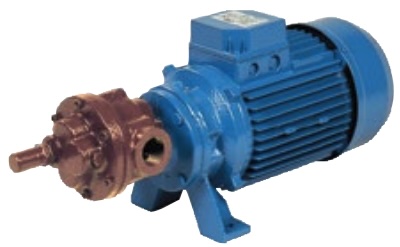

GMP, Self-Priming Gear Pumps, Bronze, up to 51LPM
PLEASE EMAIL US FOR PRICING
Volumetric self-priming gear pumps, with by-pass. WITHOUT baseplate.
Bronze body and by-pass valve, 316 Stainless Steel Gears, Stainless Steel shaft.
Wetted Components| Pump Body | Bronze (ASTM B148 C 95800) |
| Impeller Case | Bronze (ASTM B148 C 95800) |
| Impeller Case Seal | NBR |
| Motor Shaft Seal | Carbon / NBR / Alumina / AISI |
| Vanes | Not Present |
| Vane Springs | Not Present |
| Rotor / Gear / Impeller | Stainless Steel AISI 316 |
| Shaft Key / Nut | Stainless Steel AISI 316 |
| Motor Shaft | Stainless Steel AISI 316 |
| Bypass Valve Piston | Bronze (ASTM B148 C 95800) |
| Bypass Valve Seal | NA |
| Bypass Valve Spring | Stainless Steel |
Performance| Voltage / Frequency | 230v50Hz 1Ph, 230/400v50Hz 3Ph, 400/690v50Hz 3Ph |
| kW | Various, Consult PDF Below |
| Amps | Various, Consult PDF Below |
| RPM | Various, Consult PDF Below |
| Duty Cycle | Continuous |
| Cable Length | Not Present |
| Bypass Valve Y/N | Y |
| Max Flow | Various, Consult PDF Brochure Below (Ref. Page 12) |
| Discharge Pressure | Various, Consult PDF Brochure Below (Ref. Page 12) |
| Max Suction Lift (Dry) | None, requires initial prime via bleed port |
| Max Suction Lift (Wet) | 6 m |
| Inlet Fitting | 1/2"-1" BSP, Consult PDF Table Below, and Catalogue Below Page 12. |
| Outlet Fitting | 1/2"-1" BSP, Consult PDF Table Below, and Catalogue Below Page 12. |
| Max Particle Tolerance | 100 Micron |
| Max Liquid Temp | +40° Celcius |
| Min Liquid Temp | TBC |
| Max Room Temp | +40° Celcius |
| Min Room Temp | TBC |
| Thermal Protection Y/N | Y |
| Max Liquid Viscosity | 46cST |
| Ingress Protection | TBC |
Options Available| GMP Cat. No. | Pump Model No. | kW | Voltage | Port Size (BSPP Female) | Weight (Kg) | Dimensions (L*W*H) | Max. Head (m) | Max. Flow (lpm) |
| GE42 | GEAR 300B | 0.26 | 230v50Hz 1Ph | 1/2" | 11 | 170 * 390 * 210 | 100 | 5.5 |
| GE43 | GEAR 300B | 0.26 | 230v50Hz 1Ph 3Ph | 1/2" | 11 | 170 * 390 * 210 | 100 | 5.5 |
| GE06 | GEAR 600B | 0.37 | 230v50Hz 1Ph | 3/4" | 14 | 170 * 410 * 210 | 100 | 10.3 |
| GE07 | GEAR 600B | 0.37 | 230/400v50Hz 3Ph | 3/4" | 14 | 170 * 410 * 210 | 100 | 10.3 |
| GE12 | GEAR 1000B | 0.55 | 230v50Hz 1Ph | 3/4" | 15 | 170 * 450 * 210 | 100 | 16 |
| GE13 | GEAR 1000B | 0.55 | 230/400v50Hz 3Ph | 3/4" | 15 | 170 * 450 * 210 | 100 | 16 |
| GE18 | GEAR 1500B | 0.75 | 230v50Hz 1Ph | 3/4" | 18 | 170 * 460 * 210 | 100 | 26 |
| GE19 | GEAR 1500B | 0.75 | 230/400v50Hz 3Ph | 3/4" | 18 | 170 * 460 * 210 | 100 | 26 |
| GE24 | GEAR 2000B | 1.1 | 230v50Hz 1Ph | 1" | 21.5 | 170 * 465 * 210 | 100 | 36 |
| GE25 | GEAR 2000B | 1.1 | 230/400v50Hz 3Ph | 1" | 21.5 | 170 * 465 * 210 | 100 | 36 |
| GE30 | GEAR 3000B | 1.5 | 230/400v50Hz 3Ph | 1" | 24 | 170 * 525 * 210 | 100 | 51 |
| GE31 | GEAR 3000B | 1.5 | 230/400v50Hz 3Ph | 1" | 24 | 170 * 525 * 210 | 100 | 51 |
Download GMP Pumps, Catalogue PDF
Product Options
£835.00
| Product Code | GMP_GEAR_Bronze_51LPM |
| Condition | New |
