GMP, Self-Priming Gear Pumps, Cast Iron, up to 62LPM
  • Click to enlarge

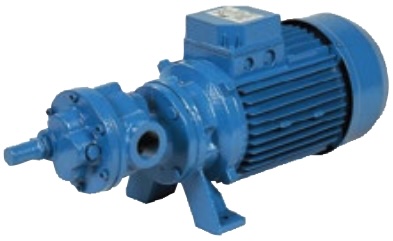

GMP, Self-Priming Gear Pumps, Cast Iron, up to 62LPM

Volumetric self-priming gear pumps, with by-pass. WITHOUT baseplate.

Cast Iron body, C40 Steel Gears, Stainless Steel shaft.

Wetted Components
Pump BodyCast Iron
Impeller CaseCast Iron
Impeller Case SealNBR
Motor Shaft SealCarbon / NBR / Alumina / AISI
VanesNot Present
Vane SpringsNot Present
Rotor / Gear / ImpellerC40 Steel
Shaft Key / NutStainless Steel AISI 316
Motor ShaftStainless Steel AISI 316
Bypass Valve PistonSteel
Bypass Valve SealNA
Bypass Valve SpringStainless Steel
Performance
Voltage / Frequency230v50Hz 1Ph, 230/400v50Hz 3Ph, 400/690v50Hz 3Ph
kWVarious, Consult PDF Below
AmpsVarious, Consult PDF Below
RPMVarious, Consult PDF Below
Duty CycleContinuous
Cable LengthNot Present
Bypass Valve Y/NY
Max FlowVarious, Consult PDF Brochure Below (Ref. Page 12)
Discharge PressureVarious, Consult PDF Brochure Below (Ref. Page 12)
Max Suction Lift (Dry)None, requires initial prime via bleed port
Max Suction Lift (Wet)6 m
Inlet Fitting1/2"-1,1/4" BSP, Consult PDF Table Below, and Catalogue Below Page 12.
Outlet Fitting1/2"-1,1/4" BSP, Consult PDF Table Below, and Catalogue Below Page 12.
Max Particle Tolerance100 Micron
Max Liquid Temp+40° Celcius
Min Liquid TempTBC
Max Room Temp+40° Celcius
Min Room TempTBC
Thermal Protection Y/NY
Max Liquid Viscosity46cST
Ingress ProtectionTBC
Options Available
GMP Cat. No.Pump Model No.kWVoltagePort Size (BSPP Female)Weight (Kg)Dimensions (L*W*H)Max. Head (m)Max. Flow (lpm)
GE03GEAR 300B0.26230v50Hz 1Ph1/2"11170 * 390 * 2101005.5
GE04GEAR 300B0.26230v50Hz 1Ph 3Ph1/2"11170 * 390 * 2101005.5
GE09GEAR 600B0.37230v50Hz 1Ph3/4"14170 * 410 * 21010010.3
GE10GEAR 600B0.37230/400v50Hz 3Ph3/4"14170 * 410 * 21010010.3
GE15GEAR 1000B0.55230v50Hz 1Ph3/4"15170 * 450 * 21010016
GE16GEAR 1000B0.55230/400v50Hz 3Ph3/4"15170 * 450 * 21010016
GE21GEAR 1500B0.75230v50Hz 1Ph3/4"18170 * 460 * 21010026
GE22GEAR 1500B0.75230/400v50Hz 3Ph3/4"18170 * 460 * 21010026
GE27GEAR 2000B1.1230v50Hz 1Ph1"21.5170 * 465 * 21010036
GE28GEAR 2000B1.1230/400v50Hz 3Ph1"21.5170 * 465 * 21010036
GE33GEAR 3000B1.5230v50Hz 1Ph1"24170 * 525 * 21010051
GE34GEAR 3000B1.5230/400v50Hz 3Ph1"24170 * 525 * 21010051
GE39GEAR 36001.8230v50Hz 1Ph1,1/4"28170 * 525 * 21010062
GE40GEAR 36001.8230/400v50Hz 3Ph1,1/4"28170 * 525 * 21010062

Download GMP Pumps, Catalogue PDFDownload GMP Pumps, Catalogue PDF

Product Options

£637.00


Product CodeGMP_GE_Cast_Iron_62LPM
ConditionNew
