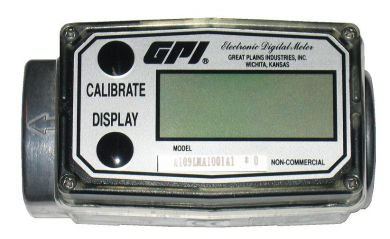

Great Plains Industries / GPI Commercial Grade, Flow Meters, Aluminium, ATEX Approved
Superb quality turbine meters, for use with any thin viscosity liquids which are not chemically agressive to the materials from which ;the components are made
Displays Flowrate, 2 Resettable Totals, and 1 Non-Resettable Cumulative Total
Optional Lexan Cover helps to protect from accidental damage
BSP female threaded inlet / outlet
Approvals
- USA;FM - Intrinsically safe for class I,II,III Division 1, Group ABCDEFG. Non-incendive for class I,II,III, Division 2, Group ADCDFG
- European;EMC Directive 89/336/EEC and 'EEx nL IIC T4 U' under ATEX Directive 84/9/EC Annex VIII II 3 G (Equipment Group 2 - Other Than Mines, Category 3 - For Zone 2, G - For Gases, Vapours and Mist. Ingress Protection per IEC 34-5, Rated IP55
Models Available & Performance| A109LMA025IA1 | 1" BSP | 1 to 10 lpm Flow Rate | Accuracy ±1.5% to ±5.0% |
| A109LMA100IA1 | 1" BSP | 10 to 190 lpm Flow Rate | Accuracy ±1.0% to ±1.5% |
| A109LMA200IA2 | 2" BSP | 100 to 1000 lpm Flow Rate | Accuracy ±1.0% to ±1.5% |
Features & Operating Limits| Display | Digital |
| Power Source | 2x Special Lithium Batteries |
| Factory Calibration | Yes |
| User Calibration | Yes |
| Temperature Range | -10 to +60 Celcius |
| Maximum Pressure | 21 Bar / 304.5 PSI |
| Maximum Viscosity | 100 Centipoises |
Wetted Components| Housing | Aluminium |
| Journal Bearings | Ceramic |
| Shaft | Tungsten Carbide |
| Rotor | Nylon 6-6 |
| Rings | 316 Stainless Steel |
| Signal Generators | (Ferrite) Ceramic Magnet |
Download GPI Commercial Grade, ATEX Approved Flow Meters Aluminium, Sheet PDF
Download GPI Commercial Grade, ATEX Approved Flow Meters Aluminium, Liquid Viscosities PDF
Download GPI Commercial Grade, ATEX Approved Flow Meters Aluminium, Manual PDF
Download GPI Commercial Grade, ATEX Approved Flow Meters Aluminium, Compatibility Guide PDF
Download GPI Commercial Grade, ATEX Approved Flow Meters Aluminium, Build Your Own A1 Meter PDF
