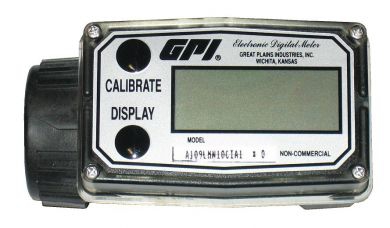

Great Plains Industries / GPI Commercial Grade, Flow Meters, Nylon, ATEX Approved
  • Click to enlarge

Great Plains Industries / GPI Commercial Grade, Flow Meters, Nylon, ATEX Approved

Superb quality turbine meters, for use with any thin viscosity liquids which are not chemically agressive to the materials from which the components are made

Displays Flowrate, 2 Resettable Totals, and 1 Non-Resettable Cumulative Total

Optional Lexan Cover helps to protect from accidental damage

Approvals

  • USA;FM - Intrinsically safe for class I,II,III Division 1, Group ABCDEFG. Non-incendive for class I,II,III, Division 2, Group ADCDFG
  • European;EMC Directive 89/336/EEC and 'EEx nL IIC T4 U' under ATEX Directive 84/9/EC Annex VIII II 3 G (Equipment Group 2 - Other Than Mines, Category 3 - For Zone 2, G - For Gases, Vapours and Mist. Ingress Protection per IEC 34-5, Rated IP55
Models Available & Performance
A109LMN025IA11" BSP1 to 10 lpm Flow RateAccuracy ±1.5% to ±5.0%
A109LMN100IA21" BSP10 to 190 lpm Flow RateAccuracy ±1.0% to +±1.5%
Features & Performance
DisplayDigital
Power Source2x Special Lithium Batteries
Factory CalibrationYes
User CalibrationYes
Inlet / Outlet Fittings1" BSP Female
Temperature Range-10 to +60 Celcius
Maximum Pressure10.3 Bar / 149.3 PSI
Maximum Viscosity100 Centipoises
Wetted Components
HousingNylon 6-6
Journal BearingsCeramic
ShaftTungsten Carbide
RotorNylon 6-6
Rings316 Stainless Steel
Signal Generators(Ferrite) Ceramic Magnet

Download GPI Commercial Grade, ATEX Approved Flow Meters Nylon, Sheet PDFDownload GPI Commercial Grade, ATEX Approved Flow Meters Nylon, Sheet PDF

Download GPI Commercial Grade, ATEX Approved Flow Meters Nylon, Liquid Viscosities PDFDownload GPI Commercial Grade, ATEX Approved Flow Meters Nylon, Liquid Viscosities PDF

Download GPI Commercial Grade, ATEX Approved Flow Meters Nylon, Manual Spec PDFDownload GPI Commercial Grade, ATEX Approved Flow Meters Nylon, Manual PDF

Download GPI Commercial Grade, ATEX Approved Flow Meters, Nylon, Chemical Compatibility Guide PDFDownload GPI Commercial Grade, ATEX Approved Flow Meters Nylon, Compatibility Guide PDF

Download GPI Commercial Grade, ATEX Approved Flow Meters Nylon, Build Your Own A1 Meter PDFDownload GPI Commercial Grade, ATEX Approved Flow Meters Nylon, Build Your Own A1 Meter PDF

Product Options

£476.30


Product CodeFL004
ConditionNew
