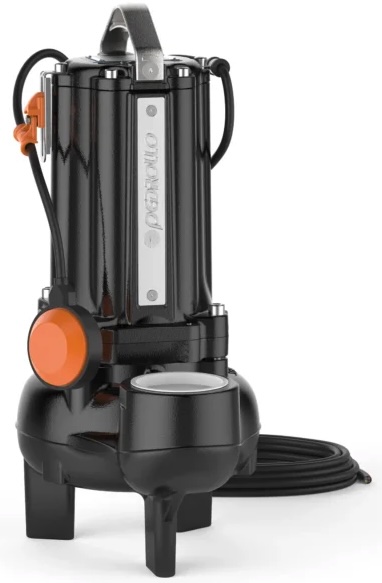

Pedrollo VXC 50-65 Vortex Submersible Pumps for Sewage

The VXC series is constructed from thick cast iron, offering exceptional robustness, abrasion resistance, and longevity. Featuring VORTEX-type impellers, these pumps are designed to drain sewage, wastewater, sludge-mixed water, activated and putrid sludge. They are suitable for a wide range of applications, including sewers, tunnels, excavations, canals, and underground parking facilities.

2 Year Manufacturers Warranty

Wetted Components
Pump Body	Cast Iron with Epoxy Electrocoating
Impellor Case	Cast iron with Epoxy Electrocoating
Impellor Case Seal	NBR
Motor Shaft Seal	NBR
Vanes	Not Present
Vane Springs	Not Present
Rotor / Gear / Impellor	Stainless Steel 304
Shaft Key / Nut	Stainless Steel 304
Motor Shaft	Stainless Steel 304
Bypass Valve Piston	Not Present
Bypass Valve Spring	Not Present

Performance
Voltage / Frequency	50 Hz / 60 Hz
kW	1.1 - 2.2
Amps
RPM	2900
Duty Cycle	Continuous
Cable Length	10 m
Bypass Valve Y/N	N
Max Flow	Up to 1250 l/min
Discharge Pressure	Up to 2.0 Bar
Max Suction Lift (Dry)	None
Max Suction Lift (Wet)	Submerged
Inlet Fitting	NA
Outlet Fitting	2.5" or 3", Consult PDF Below
Max Particle Tolerance	50mm or 65mm, Consult PDF Below
Max Liquid Temp	+40C
Min Liquid Temp
Max Room Temp
Min Room Temp
Thermal Protection Y/N	Y
Ingress Protection	IP68

Options Available
Pedrollo Part Number	Single-Phase	Three-Phase	Cable Length	kW	H(meters)	l/min
	VXCm 15/50 (Inc. Control Panel)		10m	1.1	2.5-11	600 - 100
		VXC 15/50	10m	1.1	2.5-11	600 - 100
	VXCm 20/50 (Inc. Control Panel)		10m	1.5	2.5-12.5	700 - 100
		VXC 20/50	10m	1.5	2.5-12.5	700 - 100
	VXCm 30/50 (Inc. Control Panel)		10m	2.2	2.5-16.5	850 - 100
		VXC 30/50	10m	2.2	2.5-16.5	850 - 100
		VXC 40/50	10m	3	2-19	1050-100
	VXCm 15/65 (Inc. Control Panel)		10m	1.1	1 - 7	850 - 200
		VXC 15/65	10m	1.1	1 - 7	850 - 200
	VXCm 20/65 (Inc. Control Panel)		10m	1.5	1 - 8.5	1000 - 200
		VXC 20/65	10m	1.5	1 - 8.5	1000 - 200
	VXCm 30/65 (Inc. Control Panel)		10m	2.2	1.5 - 1	1200 - 200
		VXC 30/65	10m	2.2	1.5 - 1	1200 - 200
		VXC 40/65	10m	3	2-15	1250-200

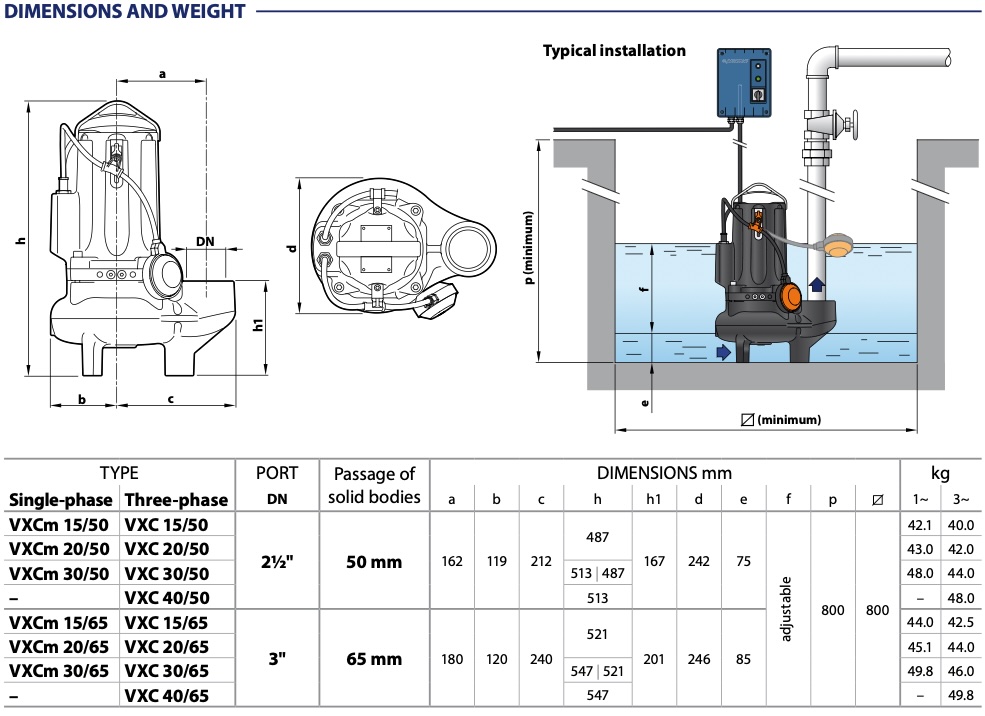

Download Pedrollo VXC 50-65 - 50Hz PDF

Download Pedrollo VXC 50-65 - 60Hz PDF
