Piusi Panther EX 56, Vane Pump, ATEX Approved
The new Panther EX AC pump series by PIUSI, designed for heavy-duty applications, delivers superior performance and uncompromising reliability. Resulting from advanced research and development, this pump sets new standards with a flow rate of 56 l/min, the highest in its category.
Capable of maintaining high performance even at high pressures, the Panther EX is ideal for various tank configurations and accessories, ensuring efficiency and versatility in every application.
Suitable for:
- Diesel
- Kerosene
- Petrol
- Petrol + 15% Ethanol
Two Models Available:

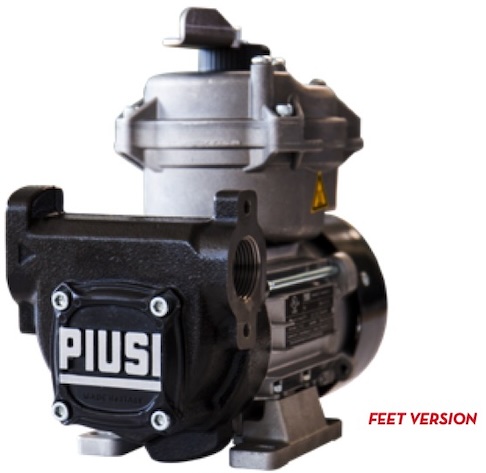

- F00580000 - Standalone model with bolt-on feet.

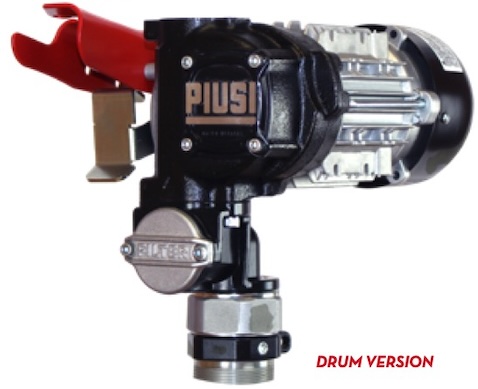

- F00580010 - Drum version without feet, and with nozzle holder, and drum connector with filter.
ATEX Designation: II 2 G Ex d IIA T4 Gb
Specifications| Piusi Part Number | F00580000 & F00580010 | |
| Piusi Description | Panther EX 56 230V AC | |
| Utilises Piusi Pump | Piusi Panther EX 56 | |
| Utilises Piusi Nozzle | None | |
| Utilises Piusi Flow Meter | None | |
| Utilises Piusi Filter | None | |
| Voltage / Frequency | 230vAC 50Hz (EU) | |
| Maximum Users | N/A | |
| kW | 0.5 | |
| Amps | 2.3 | |
| Hose Length | None | |
| Hose ID | N/A | |
| Bypass Valve Y/N | Y | |
| Max Flow | 56 lpm | |
| Discharge Pressure | 1.6 Bar | |
| Max Suction Lift (Dry) | 1.1 m | |
| Max Suction Lift (Wet) | 1.1 m | |
| Inlet Fitting | 1" BSP | |
| Outlet Fitting | 1" BSP | |
| Max Particle Tolerance | 100 Micron | |
| Thermal Protection Y/N | Y | |
| Max Liquid Viscosity | Diesel | |
| Ingress Protection | IP55 | |
| Weight | 12.4 kg | |
| Accuracy | N/A | |
Download Piusi Panther EX 56 - Brochure PDF
Download Piusi Panther EX 56 - ATEX Certificate PDF
