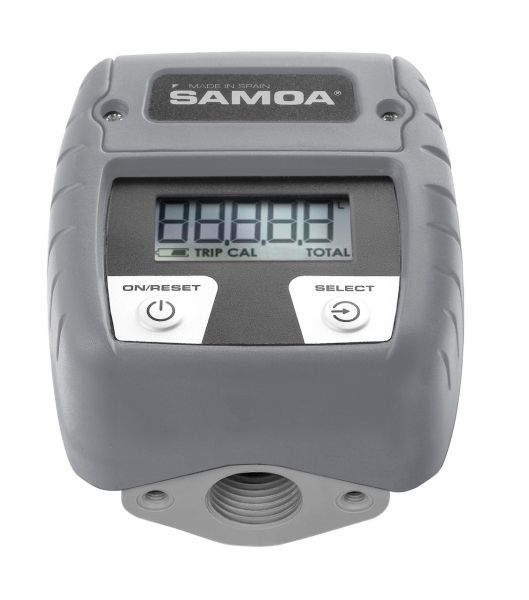

SAMOA Oval Gear Meter for AdBlue®/DEF, Windscreen Wash and Antifreeze Solutions (Low Pressure) - 1/2" BSP (F)

Oval gear meter for use as in-line meters. Manufactured in PVC, AISI 316 stainless steel, acetal and Viton® for low pressure dispense of AdBlue®/DEF, windscreen wash and antifreeze solutions. They can be wall mounted in the fluid line or at the pump outlet.

Meter includes an electronic register controlled by wetted magnets and powered with with two AAA batteries. It is shock proof and isolated from the fluid handled. Meter display is multi-function, showing the volume dispensed per delivery, and has a permanent and a resettable (trip function) totaliser. The display can be programmed to show delivery in litres, quarts, pints and US gallons. The assembly is enclosed in TPE moulded shoud.

Inlet/outlet thread:1/2" BSP (F)

Flow rate:1-50 l/min

Pulses per litre: 150 ppl

Accuracy:+/- 0.5%

Maximum operating pressure: 30 bar

Temperature range (fluid): -10°C to 60°C

Calibration: can be calibrated

Weight: 0.5kg
