Braun HZ5 RR Heating Oil Meter, 0.7 - 40.0 LPH
  • Click to enlarge

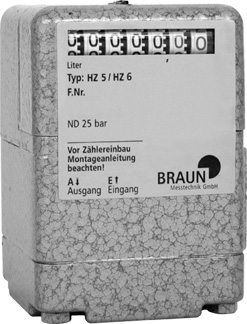

Braun HZ5-RR

Oil meters, with mechanical roller counter, and rugged metal exterior

Calibrated, EU Qualification Approval Number D01.5.223.03. Calibration Validity 10 Years

IMPORTANT - All meters must be fitted with a pre-filter of 100 Microns, Maximum. Ingress of particles over 100 microns may lead to wear and or jamming of the movement, and will not be covered by Warranty

Meters are supplied as standard with BSP Female threaded ports, pointing both outwards and downwards from the underside of the meter. We can supply Compression Fittings to suit, HERE

Suitable for Fuel Types;

  • Heating Fuel, Extra Light / Light / Medium
  • Kerosene
  • Naphtha
  • Diesel
  • Petrol
  • Lubricating Oils
Standard Specification (Non Pulsed)
 Braun HZ5-RR
Connection ThreadsDIN 3852-X-G 1/8″ internal
Nominal Pressure25 Bar
Pressure Loss0.05 Bar to 0.2 Bar
Minimum Temperature-10 Celcius
Maximum Temperature+60 Celcius
Maximum Flow RateTBC lph (OUTSIDE OF CALIBRATED FLOW RANGE)
Calibrated Maximum Flow Rate40 lph
Calibrated Minimum Flow Rate0.7 lph
Approximate Starting Flowrate0.7 lph
To Suit Burner Power Rating7 kW to 400 kW
Maximum Permissible Error±1% of reading
Smallest Readable Amount0.01 Litres
Registration Capacity0.1 L to 9,9999.98 L
Safety Filter Mesh SizeTBC
Dirt Filter Mesh SizeTBC
Volume of Measuring ChamberTBC
Ingress ProtectionIP50
Dimensions & Weight
 Braun HZ5-RR
Height
Width
Depth
Weight Without Couplings600 g

Download Braun HZ5 Datasheet PDFDownload Braun HZ5 Datasheet PDF

Download Braun HZ5 Instructions PDFDownload Braun HZ5 Instructions PDF

Product Options

£182.50


Product CodeBRASXDT126
ConditionNew
