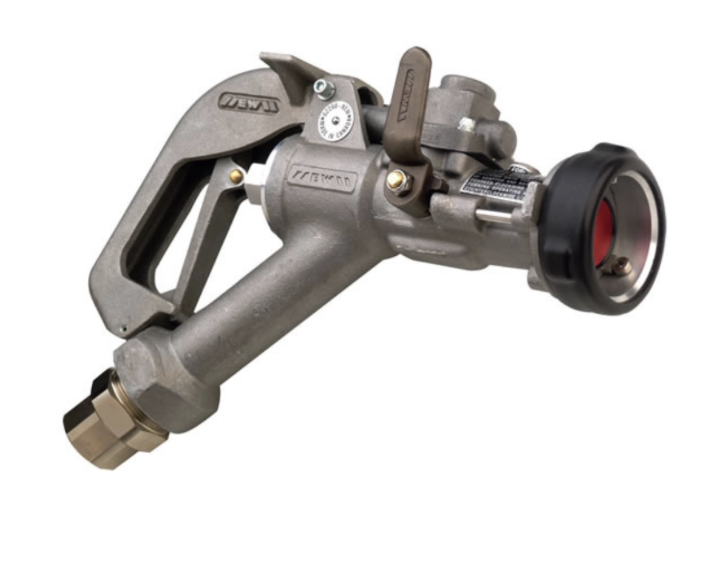

Emco Wheaton G2266 Off-Highway Equipment Automatic Fueling System

PLEASE EMAIL US FOR PRICING

EMCO Wheaton’s G2266 is an automatic fueling system for off-road diesel tanks. It is widely used in demanding environments, such as mining, where vehicles require high-speed fueling, no spillages and protection from dust and dirt. This system is proven in the field and is recognised for its rugged design. Users benefit from rapid refueling that requires minimal operator intervention – allowing colleagues to service other parts of the vehicle while filling is taking place.

Important Features

This off-road system consists of the G2266 nozzle, G40 Omnivent and a self-isolating adaptor fitted with a male or female NPT inlet. Slots fitted in the system’s adaptor engage with the nozzle, operators can then turn the unit 30 degrees clockwise to release a mechanism that prevents it from opening when not correctly connected. Once engaged, the operating lever can be rotated roughly 200 degrees counter-clockwise to a positive stop. This action opens the dry-break poppet and locks the nozzle so it cannot be removed while in the open position. From here, the main valve lever can be opened and fuel will begin to flow into the tank.

Like the adaptor, EMCO Wheaton’s G40 Omnivent is easily fitted to any off-road tank. It vents displaced air as filling begins and monitors the volume of fuel in a vehicle. Once fuel reaches a predetermined level, a float valve in the Omnivent shuts and the tank is then pressurised. Pressurising the fuel tank then activates the nozzle’s automatic shut-off feature. This intuitive design gives the system a number of key benefits for those working in off-road environments.

• Automatic – Engaging and disengaging the nozzle takes seconds. Everything else is automated. The system will fuel unattended vehicles and stop filling when the Omnivent’s valve reaches the set level. Fuel attendants are therefore free to check the vehicle’s oil and water and carry out other servicing tasks while filling takes place. This also means tanks are filled consistently, avoiding the difficulties associated with overfilling and underfilling.
• Fast Filling – The G2266 system is up to five times faster than conventional fueling methods.
• Economical – Low initial cost and minimal installation required on existing vehicles. The system will also cut fuel costs by eliminating spillages and labour time spent filling vehicles by up to 80%.
• Safe – Closed-system fueling means there’s no chance of spillages or contamination.
• Durable – The G2266 uses heavy duty components and is designed to withstand demanding environments. It has a strong track record, even after heavy repeat use.
