UKSGL Fuel Sampler/Thief, Spot/Any Level , Self-Sealing (ALSB & ALSC)
  • Click to enlarge
  • Click to enlarge

UKSGL Fuel Sampler/Thief, Spot/Any Level , Self-Sealing (ALSB & ALSC)

UK Sampling Gauges Ltd, ALSB & ALSC samplers will take truly representative samples of a liquid from any level within a tank or reservoir.

  • ALS'B' = With fitment for glass 'B'ottle (bottle not included).
  • ALS'C' = With fitment for, and supplied with Metal 'C'anister.

'Winchester' bottles are the most commonly used bottle as they are readily available, low cost, recyclable, and have a standard thread form (R6/31 GF 326B). The sampler can also be made with alternative threads for different bottles, such as the 16 Oz Bottle or a Borosilicate Glass / Schott-Duran bottle, an engineering drawing of your bottle will be required to ensure that it will fit the cage, and to program the desired thread form.

Thanks to their design and method of operating, these samplers take samples that are undiluted by the passage of the sampler through the liquid. They are suited to taking samples for quality, density, RVP, and appearance, for example.

The design ensures that the sampler remains upright during its descent through the liquid, and that the glass bottle is safeguarded against damage in the process.

The sampler stays sealed (and, therefore, empty) until it reaches the required depth, when the operator opens the top valve by a snatch on the cable. The sampler then fills, and a polypropylene ball, inside the sampler, re-seals the opening. The sampler stays sealed while the sampler is retrieved, and so the sample remains undisturbed until the operator removes the sample bottle.

The design of the self-sealing feature minimises the amount of liquid that overflows when the sampler is opened.

Bottles are supplied seperately, Winchester Bottles will come supplied with Black Polypropylene Caps with Polypropylene Cone Seals, for best resistance to most fuel types.

To DIN EN ISO 3170, for manual sampling of petroleum liquids.

Specification
ModelMaterialContainer TypeOverall Diameter (mm)Overall Length (mm)Inlet Diameter (mm)Weight (Kg)Minimum sampling height above bottom (mm)
ALSB 1/3/16Brass16oz Bottle76360 1.6300
ALSB 2/3/16316 Stainless Steel16oz Bottle76360 1.6300
ALSB 1/4/16Brass16oz Bottle102380 1.5320
ALSB 2/4/16316 Stainless Steel16oz Bottle102380 1.5320
ALSB 1/4/5Brass16oz or 500ml Winchester Bottle (advise which at time of order so thread can be cut appropriately)120390 1.7330
ALSB 2/4/5316 Stainless Steel16oz or 500ml Winchester Bottle (advise which at time of order so thread can be cut appropriately)120390 1.7330
ALSB 1/1LBrass16oz or 1000ml Winchester Bottle (advise which at time of order so thread can be cut appropriately)132420 2.0360
ALSB 2/1L316 Stainless Steel16oz or 1000ml Winchester Bottle (advise which at time of order so thread can be cut appropriately)132420 2.0360
ALSC 2/1L/64316 Stainless Steel1 Litre UKSGL Can - INCLUDED WITH SAMPLER64550 2.0490
ALSC 1001Brass1 Litre UKSGL Can - INCLUDED WITH SAMPLER76420 3.0360
ALSC 1002316 Stainless Steel1 Litre UKSGL Can - INCLUDED WITH SAMPLER76420 3.0360
ALSC 2002316 Stainless Steel2 Litre UKSGL Can - INCLUDED WITH SAMPLER76

Shown Below - ALSB 1/1L With 1L Schott-Duran Clear Glass Bottle

Shown Below - ALSB 2/1L With 1L Brown Glass Winchester Bottle

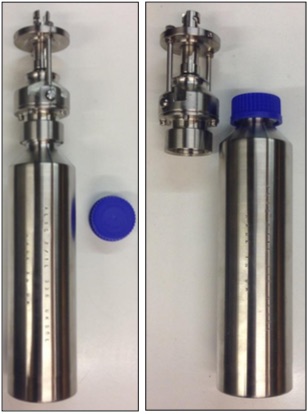

Shown Below, ALSC Sampler fitted with 1L UKSGL Can

Shown Below, 16 Oz Bottle
  • Volume: 16oz
  • Colour: Clear
  • Height: 197.6mm
  • Diameter: 66.4mm
  • Neck Finish: OD 40mm, ID 30mm

For sample analysis of H.Res (Diesel Bug), bacteria, and fungi, Oilybits recommend ECHA Microbiology, Microbmonitor2 Microbial Culture Test Kits. For information and to order please click the image below;

Commodity Codes
Sampling Vessels90328900
Cotton Rope52071000

Download Winchester Bottle, 0.5L Drawing PDFDownload Winchester Bottle, 0.5L Drawing PDF

Download Winchester Bottle, 1L Drawing PDFDownload Winchester Bottle, 1L Drawing PDF

Download Winchester Bottle, 2L Drawing PDFDownload Winchester Bottle, 2L Drawing PDF
