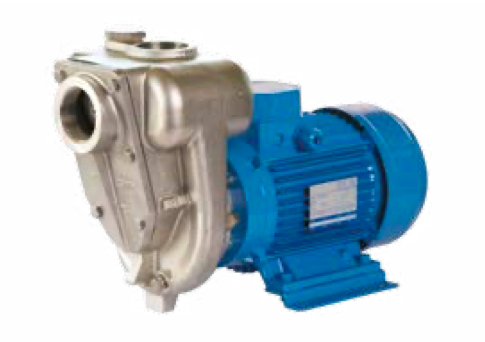

GMP, Self Priming Centrifugal Pump, AISI 316 Stainless Steel, B2KQ-A/X
Self-priming surface electric pump in stainless steel for acid water, industrial waste, transfer of diluted acids, pumping of fluid substances and food residues, recovery of leaks from chemical plants. Impeller, valve and pump body in stainless steel aisi 316, optional special mechanical seals.
B2KQ-A/X SERIES with B3/B14 MOTOR WITH SPECIAL SHAFT
NOT SUITABLE for Gasoline/Petrol- use GMP, RED, ATEX Approved, Self-Priming Centrifugal Pumps for Petrol, Bronze
Wetted Components| Pump Body | Cast Iron |
| Impeller Case | Cast Iron |
| Impeller Case Seal | NBR |
| Motor Shaft Seal | NBR |
| Vanes | Not Present |
| Vane Springs | Not Present |
| Rotor / Gear / Impellor / Grinder | Cast Iron |
| Shaft Key / Nut | Not Present |
| Motor Shaft | Stainless Steel |
| Bypass Valve Piston | Not Present |
| Bypass Valve Spring | Not Present |
Performance| Voltage / Frequency | 230/400vAC 3Ph 50Hz, 230vAC 1Ph 50Hz |
| kW | 1.5 See Table Below |
| Amps | |
| RPM | 2900 |
| Duty Cycle | Continuous |
| Cable Length | None |
| Bypass Valve Y/N | N |
| Max Flow | Various, to 450 lpm, See Table Below |
| Discharge Pressure | Various, to 3.0 Bar, See Table Below |
| Max Suction Lift (Dry) | TBC |
| Max Suction Lift (Wet) | TBC |
| Inlet Fitting | Various, See Table Below |
| Outlet Fitting | Various, See Table Below |
| Max Particle Tolerance | TBC |
| Max Liquid Temp | +40 C |
| Min Liquid Temp | |
| Max Room Temp | |
| Min Room Temp | |
| Thermal Protection Y/N | Y |
| Ingress Protection | TBC |
Options Available| GMP Cat No | Pump Model No | kW | Motor | DNM | Weight (Kg) | Dimensions (L*W*H) | H max (m) | Q max (l/min) |
| EBHL | B2KQ-A/X
| 1.5 | 230 M | 2/ 2" | 27 | 222*460*310 | 30 | 450 |
| EBHI | 230/ 400T |
