GMP, Self Priming Centrifugal Pump, High Pressure, G3TMK-A & ZPM-A & B3/B5 Motor, for Clear or Slightly Dirty Water
Series G3TMK-A & ZPM-A with B3/B5 Motor

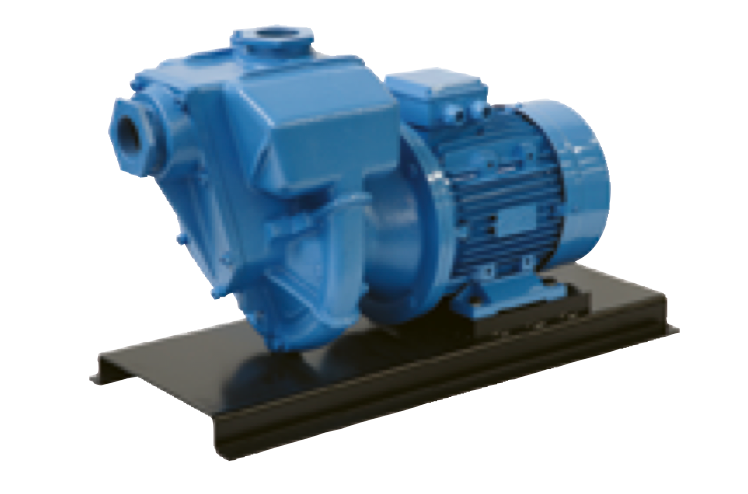

Self-priming electric pump in monobloc execution with open or closed impeller, suitable for pumping clear or slightly dirty, non-abrasive water. For high pressure.
NOT SUITABLE for Gasoline/Petrol- use GMP, RED, ATEX Approved, Self-Priming Centrifugal Pumps for Petrol, Bronze
Wetted Components| Pump Body | Cast Iron |
| Impeller Case | Cast Iron |
| Impeller Case Seal | NBR |
| Motor Shaft Seal | NBR |
| Vanes | Not Present |
| Vane Springs | Not Present |
| Rotor / Gear / Impellor / Grinder | Cast Iron |
| Shaft Key / Nut | Not Present |
| Motor Shaft | Stainless Steel |
| Bypass Valve Piston | Not Present |
| Bypass Valve Spring | Not Present |
Performance| Voltage / Frequency | 400/690vAC 3Ph 50Hz |
| kW | Various, 4 - 30, See Table Below |
| Amps | |
| RPM | 2900 |
| Duty Cycle | Continuous |
| Cable Length | None |
| Bypass Valve Y/N | N |
| Max Flow | Various, to 1750 lpm, See Table Below |
| Discharge Pressure | Various, to 7.6 Bar, See Table Below |
| Max Suction Lift (Dry) | TBC |
| Max Suction Lift (Wet) | TBC |
| Inlet Fitting | Various, See Table Below |
| Outlet Fitting | Various, See Table Below |
| Max Particle Tolerance | TBC |
| Max Liquid Temp | +40 C |
| Min Liquid Temp | |
| Max Room Temp | |
| Min Room Temp | |
| Thermal Protection Y/N | Y |
| Ingress Protection | TBC |
Options Available| GMP Cat No | Pump Model No | kW | Motor | DNM | Weight (Kg) | Dimensions (L*W*H) | H max (m) | Q max (l/ min) |
| EBRV | G3TMK-A | 4 | 400/ 690 T | 3" / 3" | 82.5 | 360*700*450 | 35 | 900 |
| EBRZ | G3TMK-A | 5.5 | 400/ 690 T | 3" / 3" | 99 | 360*790*470 | 40 | 900 |
| EBRK | G3TMK-A | 7.5 | 400/ 690 T | 3" / 3" | 105 | 360*790*470 | 47 | 900 |
| EBRW | G3TMK-A | 9.2 | 400/ 690 T | 3" / 3" | 113 | 360*790*470 | 50 | 1100 |
| EBRY | G3TMK-A | 11 | 400/ 690 T | 3" / 3" | 202 | 470*1000*505 | 55 | 1150 |
| EBSC | B11/2ZPM-A*(1) | 7.5 | 400/ 690 T | 2" / 2" | 111 | 360*790*485 | 58 | 620 |
| EBSD | B11/2ZPM-A*(1) | 15 | 400/ 690 T | 3" / 2" | 205 | 470*1000*520 | 68 | 850 |
| EBSE | B3ZPM-A | 15 | 400/ 690 T | 3" / 3" | 210 | 470*1000*540 | 64 | 1250 |
| EBSF | B3ZPM-A | 18.5 | 400/ 690 T | 3" / 3" | 247 | 470*1000*540 | 71 | 1250 |
| EBSG | B3ZPM-A | 22 | 400/ 690 T | 3" / 3" | 275 | 470*1000*540 | 76 | 1250 |
| EARN | B4ZPM-A*(2) | 22 | 400/ 690 T | 4" / 4" | 280 | 550*1250*600 | 62 | 1700 |
| EARP | B4ZPM-A*(2) | 30 | 400/ 690 T | 4" / 4" | 350 | 550*1250*620 | 65 | 1750 |
Product Options
£1,139.00
| Product Code | GMP_G3TMK-A_ZPM-A |
| Condition | New |
