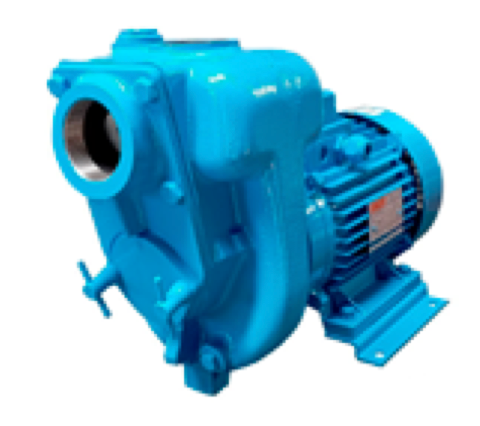

GMP, Self-Priming Centrifugal Pump, KQ-A/ST & B3/B14 Motor, for Semi-Trash / Sewage
Series KQ-A/ST with Motor B3/ B14 With Special Shaft
Self-priming electric pump for waste water. Mechanical seal in Carbide/ Silicon, wear disk and inspection door.
NOT SUITABLE for Gasoline/Petrol - use GMP, RED, ATEX Approved, Self-Priming Centrifugal Pumps for Petrol, Bronze
Wetted Components| Pump Body | Cast Iron |
| Impeller Case | Cast Iron |
| Impeller Case Seal | NBR |
| Motor Shaft Seal | NBR |
| Vanes | Not Present |
| Vane Springs | Not Present |
| Rotor / Gear / Impellor / Grinder | Cast Iron |
| Shaft Key / Nut | Not Present |
| Motor Shaft | Stainless Steel |
| Bypass Valve Piston | Not Present |
| Bypass Valve Spring | Not Present |
Performance| Voltage / Frequency | 230/400vAC 3Ph 50Hz, 230vAC 1Ph 50Hz |
| kW | Various, 0.75 to 2.2 See Table Below |
| Amps | |
| RPM | 2900 |
| Duty Cycle | Continuous |
| Cable Length | None |
| Bypass Valve Y/N | N |
| Max Flow | Various, to 900 lpm, See Table Below |
| Discharge Pressure | Various, to 1.8 Bar, See Table Below |
| Max Suction Lift (Dry) | TBC |
| Max Suction Lift (Wet) | TBC |
| Inlet Fitting | Various, See Table Below |
| Outlet Fitting | Various, See Table Below |
| Max Particle Tolerance | TBC |
| Max Liquid Temp | +40 C |
| Min Liquid Temp | |
| Max Room Temp | |
| Min Room Temp | |
| Thermal Protection Y/N | Y |
| Ingress Protection | TBC |
Options Available| GMP Cat. No. | Pump Model No. | kW | Motor | DNA / DNM | Weight (Kg) | Dimensions (L*W*H) | Max. Head (m) | Max. Flow (lpm) |
| EBET | B1 1/2KQ-A/ST(*12mm) | 0.75 | 230M | 1 1/2" / 1 1/2" | 21 | 205*41*295 | 15.5 | 270 |
| EBEU | 230/ 400T |
| EBEV | B2KG-A/ST (*13mm) | 1.1 | 230 M | 2" / 2" | 22.5 | 205*420*310 | 17.4 | 370 |
| EBEW | 230/ 400T |
| EBEX | B2KG-A/ST (*14mm) | 1.5 | 230M | 2" / 2" | 26.5 | 222 *460*310 | 18 | 440 |
| EBEY | 230/ 400 T |
| EBEZ | B3KG-A/ST (*26mm) | 2.2 | 230M | 3"/ 3" | 32 | 222*495*295 | 16 | 900 |
| EBEJ | 230/ 400T |
