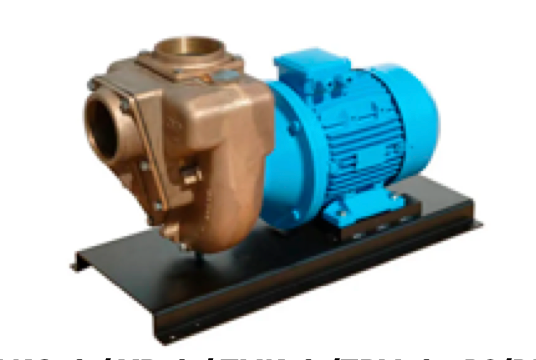

GMP, Self-Priming Centrifugal Pumps for Sea Water, Marine Bronze, KQ-A, XR-A, TMK-A, ZPM-A
Series KQ-A, XR-A, TMK-A, ZPM-A, with B3/B5 Motor
Pumps in marine bronze, monobloc execution with open impeller that allows the passage of big solids. Bronze body, flange, impeller and valve, stainless steel shaft. Open impellers allow large particles and solids to pass through.
Self priming, a non-return valve is fitted on the inlet of the pump body to avoid loss of liquid after the pump has stopped, making it easier to prime when the pump starts again.
Particularly suitable for marine use, such as:
- Sea Water Cooling / Circulation
- Sea Water Pump Outs, Bilges etc.
- Sea Water Ballast Tank Transfer
- Sea Water Jet Bow/Stern Thrusters
Wetted Components| Pump Body | Bronze (ASTM B148 C 95800) |
| Impeller Case | Bronze (ASTM B148 C 95800) |
| Impeller Case Seal | NBR |
| Motor Shaft Seal | NBR / Stainless Steel AISI 316 |
| Vanes | Not Present |
| Vane Springs | Not Present |
| Rotor / Gear / Impeller | Bronze (ASTM B148 C 95800), Open Impeller |
| Shaft Key / Nut | Not Present |
| Motor Shaft | Stainless Steel AISI 316 |
| Bypass Valve Piston | Not Present |
| Bypass Valve Seal | Not Present |
| Bypass Valve Spring | Not Present |
Performance| Voltage / Frequency | 400/690vAC 3Ph 50Hz, 230/400vAC 3Ph 50Hz, 230vAC 1Ph 50Hz |
| kW | Various, 4 - 30, See Table Below |
| Amps | |
| RPM | 2900 |
| Duty Cycle | Continuous |
| Cable Length | None |
| Bypass Valve Y/N | N |
| Max Flow | Various, to 2300 lpm, See Table Below |
| Discharge Pressure | Various, to 7.6 Bar, See Table Below |
| Max Suction Lift (Dry) | TBC |
| Max Suction Lift (Wet) | TBC |
| Inlet Fitting | Various, See Table Below |
| Outlet Fitting | Various, See Table Below |
| Max Particle Tolerance | TBC |
| Max Liquid Temp | +40 C |
| Min Liquid Temp | |
| Max Room Temp | |
| Min Room Temp | |
| Thermal Protection Y/N | Y |
| Ingress Protection | TBC |
Options Available| GMP Cat No | Pump Model No | kW | Motor | DNA / DNM | Weight (Kg) | Dimensions (L*W*H) | H max (m) | Q max (l/ min) |
| EBSS | B4KQ-A/B | 4 | 400/ 690 T | 4" / 4" | 87 | 360*700*455 | 15.6 | 1650 |
| EBST | B3XR-A/B | 4 | 400/ 690 T | 3" / 3" | 82.5 | 360*700*450 | 28.5 | 1250 |
| EBSU | B3XR-A/B | 5.5 | 400/ 690 T | 3" / 3" | 99.5 | 360*800*470 | 28.5 | 1420 |
| EBSV | B3XR-A/B | 7.5 | 400/ 690 T | 3 " / 3" | 107.5 | 360*800*470 | 34 | 1460 |
| EBSW | B4XR-A/B | 11 | 400/ 690 T | 4" / 4" | 223 | 470*100*545 | 32.5 | 2200 |
| EBSX | B4XR-A/B | 15 | 400/ 690 T | 4" / 4" | 234 | 470*100*545 | 34 | 2300 |
| EBSY | G2TMK-A/B | 2.2 | 230 M | 2" / 2" | 37 | 230*450*320 | 33.5 | 400 |
| EBLP | 230/ 400 T |
| EBFG | G2TMK-A/B | 3 | 230/ 400 T | 2" / 2" | 38 | 230*450*320 | 34 | 420 |
| EBSZ | G3TMK-A/B | 4 | 400/ 690 T | 3" / 3" | 89 | 360*700*450 | 35 | 900 |
| EBTA | G3TMK-A/B | 5.5 | 400/ 690 T | 3" / 3" | 104 | 360*800*470 | 40 | 900 |
| EBTB | G2TMK-A/B | 7.5 | 400 690 T | 3 "/ 3" | 112 | 360*800*470 | 47 | 900 |
| EBTC | G3TMK-A/B | 9.2 | 400/ 690 T | 3" / 3" | 119 | 360*800*470 | 50 | 1100 |
| EBTD | G3TMK-A/B | 11 | 400/ 690 T | 3" / 3" | 209 | 470*1000*506 | 55 | 1150 |
| EBTE | B3ZPM-A/B | 15 | 400/ 690 T | 3" / 3" | 216 | 470*1000*530 | 64 | 1250 |
| EBTF | B3ZPM-A/B | 18.5 | 400/ 690 T | 3" / 3" | 253 | 470*1000*530 | 71 | 1250 |
| EBTG | B3ZPM-A/B | 22 | 400/ 690 T | 3" / 3" | 281 | 470*1000*550 | 76 | 1250 |
| EART | B4ZPM-A/B | 22 | 400/ 690 T | 4" / 4" | 295 | 550*1250*600 | 62 | 1700 |
| EARZ | B4ZPM-A/B*(2) | 30 | 400 / 690 T | 4" / 4" | 365 | 550*1290*620 | 65 | 1750 |
