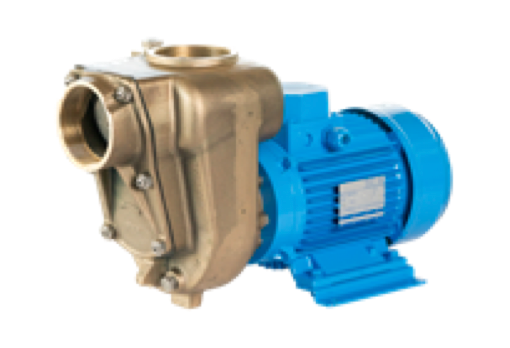

GMP, Self-Priming Centrifugal Pumps for Sea Water, Marine Bronze, KQ-A/B
Series KQ-A/B with Motor B3/B14 With Special Shaft
Self-priming electric pump in marine bronze monobloc with open impeller. Particularly suitable for marine use and circulation of sea water. Body, flange, impeller and valve in bronze, shaft in stainless steel.
Wetted Components| Pump Body | Bronze (ASTM B148 C 95800) |
| Impeller Case | Bronze (ASTM B148 C 95800) |
| Impeller Case Seal | NBR |
| Motor Shaft Seal | NBR / Stainless Steel AISI 316 |
| Vanes | Not Present |
| Vane Springs | Not Present |
| Rotor / Gear / Impeller | Bronze (ASTM B148 C 95800), Open Impeller |
| Shaft Key / Nut | Not Present |
| Motor Shaft | Stainless Steel AISI 316 |
| Bypass Valve Piston | Not Present |
| Bypass Valve Seal | Not Present |
| Bypass Valve Spring | Not Present |
Performance| Voltage / Frequency | 230/400vAC 3Ph 50Hz, 230vAC 1Ph 50Hz |
| kW | Various, 0.55 - 2.2 See Table Below |
| Amps | |
| RPM | 2900 |
| Duty Cycle | Continuous |
| Cable Length | None |
| Bypass Valve Y/N | N |
| Max Flow | Various, to 900 lpm, See Table Below |
| Discharge Pressure | Various, to 1.9 Bar, See Table Below |
| Max Suction Lift (Dry) | TBC |
| Max Suction Lift (Wet) | TBC |
| Inlet Fitting | Various, See Table Below |
| Outlet Fitting | Various, See Table Below |
| Max Particle Tolerance | TBC |
| Max Liquid Temp | +40 C |
| Min Liquid Temp | |
| Max Room Temp | |
| Min Room Temp | |
| Thermal Protection Y/N | Y |
| Ingress Protection | TBC |
Options Available| GMP Cat. No. | Pump Model No. | kW | Motor | DNA / DNM | Weight (Kg) | Dimensions (L*W*H) | Max. Head (m) | Max. Flow (lpm) |
| EBEK | B1 KQ-A/B | 0.55 | 230M | 1 / 1 | 19 | 193*390*295 | 12.4 | 135 |
| EBFA | 230/ 400T |
| EBFB | B1 1/2 A/B | 0.75 | 230 M | 1 1/2 " / 1 1/2 " | 23 | 205*415*295 | 16 | 285 |
| EBFC | 230/ 400T |
| EBFD | B2KG-A/B | 1.5 | 230M | 2" / 2" | 27 | 222 *460*310 | 19 | 450 |
| EBFE | 230/ 400 T |
| EBFF | B3KG-A/B | 2.2 | 230M | 3"/ 3" | 33 | 222*495*295 | 16 | 900 |
| EBFH | 230/ 400T |
