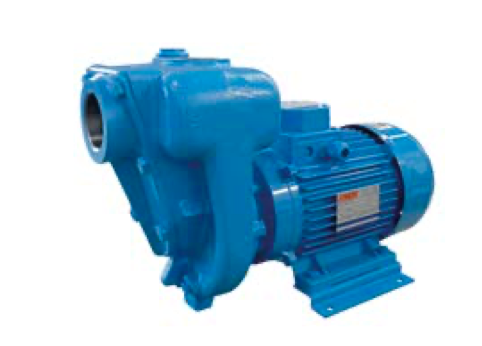

GMP, Self-Priming Centrifugal Pumps KQ-A & B3/B14 Motor, for Clear or Slightly Dirty Water
Series KQ-A - Motor B3/ B14 With Special Shaft
GMP 'BLUE' fuel transfer pumps in monobloc execution with open impeller, suitable for pumping clear or slightly dirty water, but not abrasive.
Self priming, a non-return valve is fitted on the inlet of the pump body to avoid loss of liquid after the pump has stopped, making it easier to prime when the pump starts again.
NOT SUITABLE for Gasoline/Petrol- use GMP, RED, ATEX Approved, Self-Priming Centrifugal Pumps for Petrol, Bronze
Wetted Components| Pump Body | Cast Iron |
| Impeller Case | Cast Iron |
| Impeller Case Seal | NBR |
| Motor Shaft Seal | NBR |
| Vanes | Not Present |
| Vane Springs | Not Present |
| Rotor / Gear / Impellor / Grinder | Cast Iron |
| Shaft Key / Nut | Not Present |
| Motor Shaft | Stainless Steel |
| Bypass Valve Piston | Not Present |
| Bypass Valve Spring | Not Present |
Performance| Voltage / Frequency | 24vDC, 230vAC 1Ph 50Hz, 230/400vAC 3Ph 50Hz, 400/690vAC 3Ph 50Hz |
| kW | Various, 0.55 - 2.2, See Table Below |
| Amps | |
| RPM | 2900 |
| Duty Cycle | Continuous |
| Cable Length | None |
| Bypass Valve Y/N | N |
| Max Flow | Various, 135 to 900 lpm, See Table Below |
| Discharge Pressure | Various, 1.24 to 1.9 Bar, See Table Below |
| Max Suction Lift (Dry) | TBC |
| Max Suction Lift (Wet) | TBC |
| Inlet Fitting | Various, See Table Below |
| Outlet Fitting | Various, See Table Below |
| Max Particle Tolerance | TBC |
| Max Liquid Temp | +40 C |
| Min Liquid Temp | |
| Max Room Temp | |
| Min Room Temp | |
| Thermal Protection Y/N | Y |
| Ingress Protection | TBC |
Options Available| GMP Cat. No. | Pump Model No. | kW | Voltage | Port Size (BSPP Female) | Weight (Kg) | Dimensions (L*W*H) | Max. Head (m) | Max. Flow (lpm) |
| EBES | B1KQ-A | 0.55 | 230M | 1" | 18 | 193 * 390 * 295 | 12.4 | 135 |
| EBER | 230/ 400T |
| EAPM | B1KQ-A | 1.00 | 24 Volt C.C. | 1" | 18.3 | 190 * 430 * 285 | 12.4 | 135 |
| EBEQ | B11/2KG-A | 0.55 | 230 M | 1 1/2" / 1 1/2" | 20 | 193 * 390 * 295 | 14.4 | 250 |
| EBEP | 230/ 400T |
| EBDJ | B 1/2 KG-A | 0.75 | 230M | 1 1/2" / 1 1/2" | 20.5 | 205 * 415 *295 | 16 | 285 |
| EBEN |
| EBDW | B 2KQ-A | 1.1 | 230M | 2"/ 2" | 22 | 205 * 420 * 310 | 18 | 380 |
| EBDK | 230/ 400T |
| EBDY | B2KQ-A | 1.5 | 230M | 2"/ 2" | 26.5 | 222 * 460 * 310 | 19 | 450 |
| EBEB | 230/ 400T |
| EBDZ | B3KQ-A | 2.2 | 230M | 3"/ 3" | 31.5 | 222 * 495 * 295 | 16 | 900 |
| EBDV | 230/ 400T |
