GMP, Self-Priming Centrifugal Pumps, High Pressure, G2TMK-A & B3/B5 Motor, for Clear or Slightly Dirty Water

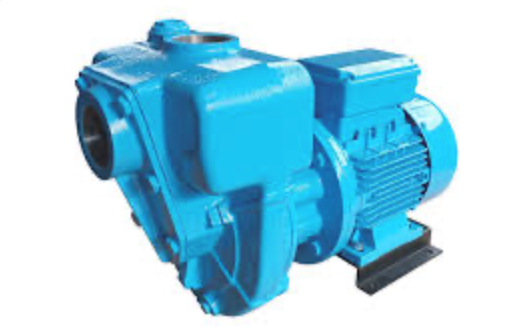

Series G2TMK-A with B3/B5 Motor
Self-priming electric pump in monobloc execution with open or closed impeller, suitable for pumping clear or slightly dirty, non-abrasive water. For high pressure.
NOT SUITABLE for Gasoline/Petrol - use GMP, RED, ATEX Approved, Self-Priming Centrifugal Pumps for Petrol, Bronze
Wetted Components| Pump Body | Cast Iron |
| Impeller Case | Cast Iron |
| Impeller Case Seal | NBR |
| Motor Shaft Seal | NBR |
| Vanes | Not Present |
| Vane Springs | Not Present |
| Rotor / Gear / Impellor / Grinder | Cast Iron |
| Shaft Key / Nut | Not Present |
| Motor Shaft | Stainless Steel |
| Bypass Valve Piston | Not Present |
| Bypass Valve Spring | Not Present |
Performance| Voltage / Frequency | 230/400vAC 3Ph 50Hz, 230vAC 1Ph 50Hz |
| kW | Various, 1.5 to 3, See Table Below |
| Amps | |
| RPM | 2900 |
| Duty Cycle | Continuous |
| Cable Length | None |
| Bypass Valve Y/N | N |
| Max Flow | Various, to 420 lpm, See Table Below |
| Discharge Pressure | Various, to 3.7 Bar, See Table Below |
| Max Suction Lift (Dry) | TBC |
| Max Suction Lift (Wet) | TBC |
| Inlet Fitting | Various, See Table Below |
| Outlet Fitting | Various, See Table Below |
| Max Particle Tolerance | TBC |
| Max Liquid Temp | +40 C |
| Min Liquid Temp | |
| Max Room Temp | |
| Min Room Temp | |
| Thermal Protection Y/N | Y |
| Ingress Protection | TBC |
Options Available| GMP Cat. No. | Pump Model No. | kW | Motor | DNA / DNM | Weight (Kg) | Dimensions (L*W*H) | Max. Head (m) | Max. Flow (lpm) |
| EBPY | G2TMK-A*(1) | 1.5 | 230M | 2" / 2" | 35 | 230*450 *320 | 32.8 | 350 |
| EBLG | 230/ 400T |
| EBPW | G2TMK-A*(1) | 2.2 | 230M | 2" / 2" | 37 | 230*450*320 | 37 | 370 |
| EBHX | 230/ 400 T |
| EBSA | G2TMK-A | 2.2 | 230 M | 2" / 2" | 37 | 230*450*320 | 33.5 | 400 |
| EBSB | 230 / 400 T |
| EBHU | G2TMK-A | 3 | 230/ 400 T | 2" / 2" | 37 | 230*450*320 | 34 | 420 |
