Great Plains Industries / GPI Electric Gear Pumps, with Filter
- Self-priming gear pumps.
- With filter.
- Explosion-proof motors.
- Popular for dispensing Diesel fuel, Up to 20% biodiesel blends such as B20, Gasoline, Up to 15% alcohol blends such as E15, Kerosene (UL certified for use with Petrol under US jurisdiction).
- 12ft of 3/4" ID delivery hose.
- Automatic or Manual shut-off dispensing nozzle with 3/4" spout for petrol cars.
- 2" tank adaptor for mounting to drum threads.
- Power-isolating, lockable, nozzle holster, which will switch the pump on / off as the nozzle is removed / replaced.
- Four versions available, with M180S having the highest flow-rate, see below for further details.
- Made in the USA.
- 2 YEAR WARRANTY.

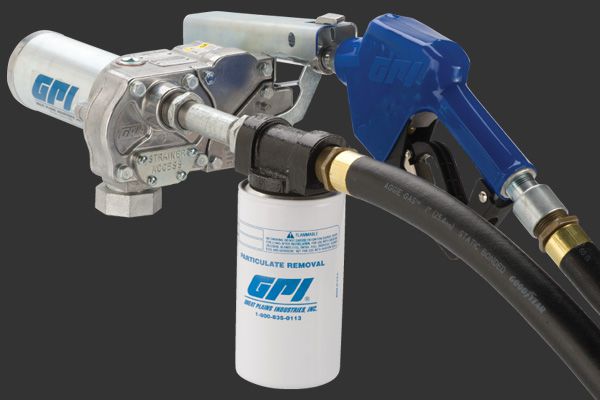

Shown Below, M-180S Filter Combo DC (Automatic Nozzle, Manual Nozzle)
Product Options| GPI Model | GPI Part Number | Flow Rate | Nozzle | Hose | Filter | Suction Pipe | Temperature Rating | Voltage & Power | Variant |
| M-180S-MU | 110610-11 | 69 lpm | Manual | 12ft (3.7m), 3/4"ID, 3/4"NPT | 10 Micron | 1"NPT, Adjustable, 15" to 40" (101.6cm) | Unknown | 12vDC - Duty Cycle 30min on / 30min off, 18ft (5.5m) Cord. | Pump kit with Manual Nozzle |
| M-180S-AU | 110610-13 | 69 lpm | Automatic | 12ft (3.7m), 3/4"ID, 3/4"NPT | 10 Micron | 1"NPT, Adjustable, 15" to 40" (101.6cm) | Unknown | 12vDC - Duty Cycle 30min on / 30min off, 18ft (5.5m) Cord. | Pump Kit with Automatic Nozzle |
Wetted Components| Pump Body | Aluminium |
| Impellor Case | Aluminium |
| Impellor Case Seal | NBR |
| Motor Shaft Seal | NBR |
| Vanes | Not Present |
| Vane Springs | Not Present |
| Rotor / Gear / Impellor | PBT (Valox) |
| Shaft Key / Nut | 416 Stainless Steel |
| Motor Shaft | 416 Stainless Steel |
| Bypass Valve Piston | Not Present |
| Bypass Valve Seal | Not Present |
| Bypass Valve Spring | Not Present |
Performance| Model | M180S |
| Voltage / Frequency | 12vDC |
| kW | |
| Amps | 21 |
| RPM | 1900 |
| Duty Cycle | 30 Min On / 30 Min OFf |
| Cable Length | 5.5 m |
| Bypass Valve Y/N | N |
| Max Flow | 58 lpm @ 0 m head |
| Discharge Pressure | |
| Max Suction Lift (Dry) | 1.5 m |
| Max Suction Lift (Wet) | |
| Inlet Fitting | 1" NPT |
| Outlet Fitting | 3/4" NPT |
| Max Particle Tolerance | 100 Micron |
| Max Liquid Temp | 40 Celcius |
| Min Liquid Temp | |
| Max Room Temp | 52 Celcius |
| Min Room Temp | -29 Celcius |
| Thermal Protection Y/N | Y |
| Max Liquid Viscosity | Diesel |
| Ingress Protection | Weatherproof |
Download GPI M-Series Drum Pumps - Specifications PDF
Download GPI M-Series Drum Pumps - Manual PDF
