JOBIRD RS700 'Firebird', Heli-Fuel Sample Cabinet
For the storage of Heli-fuel sample jars.
This cabinet is widely used in the offshore energy and marine sectors.
- Lloyds Register Type-Test Approved.
- ABS approved.
- IP56 Rated.
These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection for equipment stored inside in even the harshest environments.

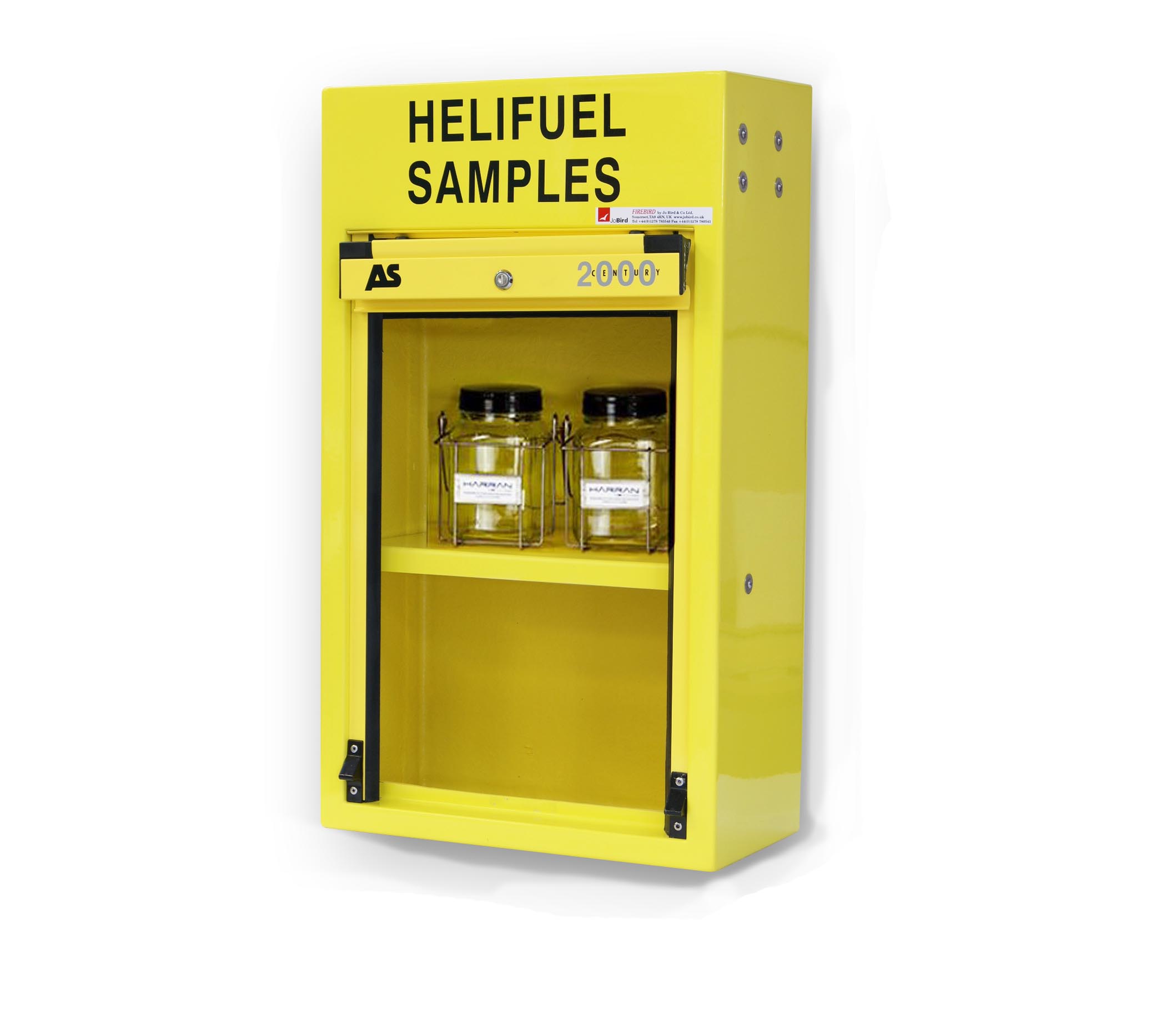

The design ensures a high level of rigidity for the relatively low weight with a very effective EPDM seal around the door aperture. The roller shutter door enables access in confined spaces. The AS shutters used have proved to be extremely durable over a very long period of time. This cabinet comes fitted with 1 x central shelf to store the Helifuel samples.
Specifications| Dimensions (H*W*D): | 961 x 552 x 330 mm (37.83 x 21.73 x 12.99”) |
| Aperture (H*W): | 580 x 388 mm (22.83 x 15.28”) |
| Internal Depth: | 245 mm (9.65”) |
| Weight: | 32 Kg (70.4 lb) |
| Colour: | Yellow RAL 1018. |
| Material: | Lloyds approved 3-4mm GRP composites with UV stabilised gelcoat. |
| Lettering: | “HELIFUEL SAMPLES”, 50 mm high, black. |

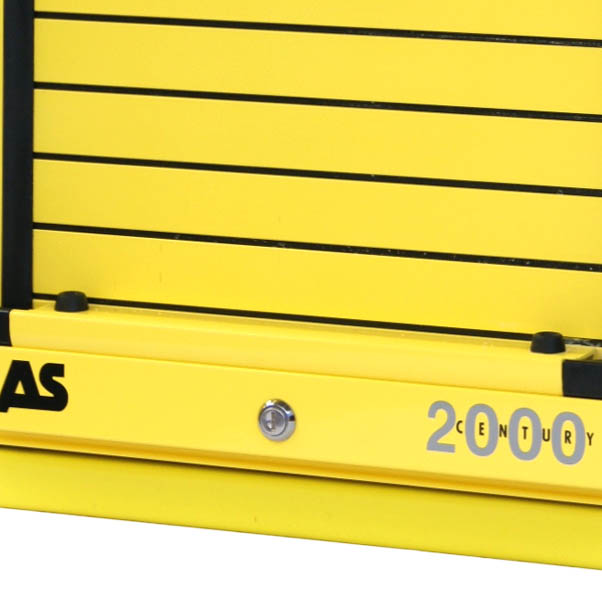

| Roller Shutter: | Extreme Environment Roller Shutter in Aluminium. |
| Optional Extras: | Other RAL colours / Class 1 fire retardant composites. |
Commodity Codes| Article | Tariff Code | Origin |
| RS700Helifuel | 39269097 | U.K. |
