Oilybits Compact Hydraulic Oil Filtration System, for 0.1 Micron Particle & Water Removal
  • Click to enlarge
  • Click to enlarge

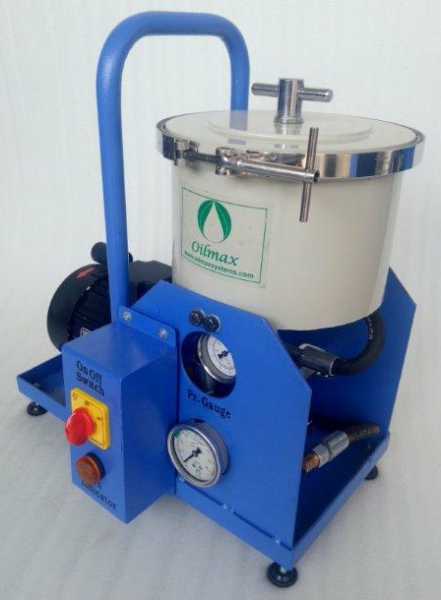

Oilybits Compact Hydraulic Oil Filtration System, for 0.1 Micron Particle & Water Removal

A compact Filter unit capable of removing particles and free, miscible, and emulsified water. System also features a rare earth magnet to trap magnetic metallic particles before they reach the filtration media, prolonging the life of the filter element.

  • Reduces oil consumption
  • Increases oil change interval
  • Reduces machine downtime
  • Reduces pollution and environmental impact
  • Reduces storage and disposal cost of waste oil
  • Cost savings on machine tool filters, and oil
  • 0.1 Micron hydro-sorb fibre filter element. Sold in boxes of 12 pc.
  • Cleanliness to ISO 14/12 or better, (SAE 1, NAS 4)

AVAILABLE IN VARIOUS VOLTAGES, AND WITH A CHOICE OF PAINT COLOURS, EMAIL US FOR PRICE AND AVAILABILITY

Options - Gravity Oil Output
ModelHF-200 SHFm-200 S
Voltage400v50Hz3Ph240v50Hz1Ph
Suitable for Tank Capacity400 litre400 litre
Supply Pump Power0.25 hp
Outflow Pump PowerNot PresentNot Present
Weight25 Kg25 Kg
Dimensions, L * W * H (Inches)10 * 18 * 1910 * 18 * 19
Replacement Filter, Dimenisons (1 Pc)21 x 21 x 13.5 cm, Wt. 1.095 Kg21 x 21 x 13.5 cm, Wt. 1.095 Kg
Replacement Filter, Dimenisons (Box of 12)45 x 66 x 30 cm, Wt. 14.01Kg45 x 66 x 30 cm, Wt. 14.01Kg
Filter Element Specification
MakeFiltroil
Model200E (HE)
Optimum Flow Rate2.8 lpm
Maximum Temperature80c
Micron Rating0.1
Beta Ratio>/1000
Efficiency99.9%
Dirt Capacity200 Grams
Water Capacity300 ml
Cleanliness StandardsISO 14/12 or better (SAE 1, NAS 4)
Maintains Total Acid Number0.1 to 1.5 depending on oil
Maintains Water Level<0.3% by volume
Maintains Oil Viscosity+/- 15% of original viscosity
Dimensions193mm Dia. 115mm H.

Download Filtroil HD Fibre Filter Elements - Brochure PDFDownload Filtroil HD Fibre Filter Elements - Brochure PDF

Download Filtroil 200E HD Fibre Filter Element - Drawing PDFDownload Filtroil 200E HD Fibre Filter Element - Drawing PDF

Product Options

£949.00


Product CodeOilmax_HF200-S
ConditionNew
