Pedrollo 2-5 CR Centrifugal Pump
  • Click to enlarge

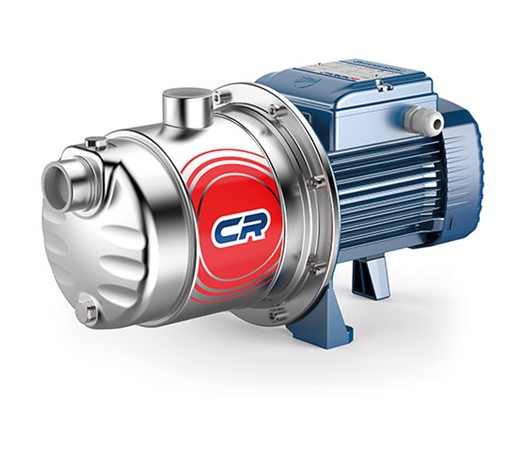

Pedrollo 2-5 CR Stainless Steel, Multi-Stage Centrifugal Pump

Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.

As a result of their quietness, these pumps are widely used in domestic applications such as the distribution of water in combination with small and medium sized pressure sets, and for the irrigation of gardens and allotments, etc.

2 Year Manufacturers Warranty

Wetted Components
Pump BodyAISI 304 Stainless Steel
Impellor CaseAISI 304 Stainless Steel
Impellor Case SealNBR
Motor Shaft SealNBR
VanesNot Present
Vane SpringsNot Present
Rotor / Gear / ImpellorGlass Reinforced Polypropylene
Shaft Key / Nut304 Stainless Steel
Motor Shaft304 Stainless Steel
Bypass Valve PistonNot Present
Bypass Valve SealNot Present
Bypass Valve SpringNot Present
Performance
Voltage / Frequency110v50Hz, 230v50Hz, or 3-Phase 415v50Hz
kWVarious, Consult PDF Below
AmpsVarious, Consult PDF Below
RPMVarious, Consult PDF Below
Duty CycleContinuous
Cable LengthNot Present
Bypass Valve Y/NN
Max FlowVarious, Consult PDF Below - Max 120 lpm
Discharge PressureVarious, Consult PDF Below
Max Suction Lift (Dry)None
Max Suction Lift (Wet)7 m
Inlet Fitting1" BSP
Outlet Fitting1" BSP
Max Particle Tolerance100 Micron
Max Liquid Temp+40° Celcius
Min Liquid Temp-10° Celcius
Max Room Temp+40° Celcius
Min Room TempTBC
Thermal Protection Y/NY
Max Liquid ViscosityWater
Ingress ProtectionIP44
Options Available
Single Phase 230vThree Phase 415vPedrollo Part NumberkW (230v)lpmHead (m)
2CRm 80 UK 43CR76A10.375-7026-5
 2CR 80TBC0.375-7026-5
3CRm 60 TBC0.375-7030-7
 3CR 60TBC0.375-7030-7
3CRm 80 UK 43CR80A10.455-8038-5
 3CR 80UK 43CR80A0.455-8038-5
4CRm 80 UK 43CR81A10.555-8050-10
 4CR 80UK 43CR81A0.555-8050-10
5CRm 80 TBC0.555-8066-12
 5CR 80TBC0.555-8066-12
3CRm 100 UK 43CR85A10.555-12037-5
 3CR100UK 43CR85A0.555-12037-5
4CRm 100 TBC0.755-13050-5
 4CR 100TBC0.755-13050-5
5CRm 100 TBC1.15-13062-8
 5CR 100TBC1.15-13062-8

For 110v 50Hz, and 60Hz motors please email us for availability and price.

Download Pedrollo 2-5CR, 50Hz PDFDownload Pedrollo 2-5CR, 50Hz PDF

Download Pedrollo 2-5CR, 60Hz PDFDownload Pedrollo 2-5CR, 60Hz PDF
