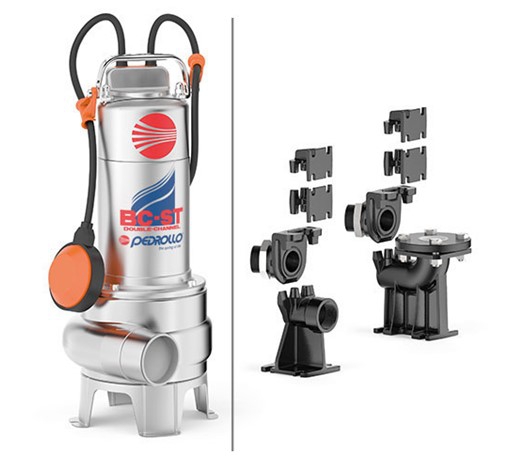

Pedrollo BC-ST Double-Channel Submersible Pump for Sewage
  • Click to enlarge

Pedrollo BC-ST Double-Channel Submersible Pump for Sewage

BC-ST submersible pumps in stainless steel are recommended for draining dirty and filthy water in domestic, civil and industrial applications. They come equipped with a DOUBLE-CHANNEL impeller and are capable of pumping liquids containing short fibred suspended solids up to Ø 50 mm. They are ideal for pumping sewage, waste water, surface water and water mixed with mud in locations such as blocks of flats and detached houses.

These pumps distinguish themselves for their reliability, which can be best appreciated under automatic operating conditions in fixed installations.

2 Year Manufacturers Warranty

Wetted Components
Pump Body Stainless Steel 304
Impellor Case Stainless Steel 304
Impellor Case Seal NBR
Motor Shaft Seal NBR
Vanes Not Present
Vane Springs Not Present
Rotor / Gear / Impellor Stainless Steel 304
Shaft Key / Nut Stainless Steel 304
Motor Shaft Stainless Steel 304
Bypass Valve Piston Not Present
Bypass Valve Spring Not Present
Performance
Voltage / Frequency 50Hz / 60Hz
kW 0.75 - 1.1
Amps Various, Consult PDF Below
RPM 2900
Duty Cycle Continuous
Cable Length 10n
Bypass Valve Y/N N
Max Flow 750 lpm
Discharge Pressure 1.4 Bar
Max Suction Lift (Dry) None
Max Suction Lift (Wet) Submerged (Max 5m)
Inlet Fitting NA
Outlet Fitting 2"
Max Particle Tolerance 50 mm
Max Liquid Temp +40 C
Min Liquid Temp
Max Room Temp
Min Room Temp
Thermal Protection Y/N Y
Ingress Protection IPX8
Options Available
Pedrollo Part Number Model Cable Length kW lpm Head (m)
48SGM88A0AU BC 10/50-ST 10m 0.75 50 - 600 2 - 11
48SGM88B0AU BC 15/50-ST 10m 1.1 50 - 750 2 - 14
48SGM88A0A1U BCm 10/50-ST 10m 0.75 50 - 600 2 - 11
48SGM88B0A1U BCm 15/50-ST 10m 1.1 50 - 750 2 - 14

For 110v 50Hz, and 60Hz motors please email us for availability and price.

Download Pedrollo Top-GM, 50Hz PDFDownload Pedrollo Top-GM, 50Hz PDF

Download Pedrollo Top-GM, 60Hz PDFDownload Pedrollo Top-GM, 60Hz PDF
