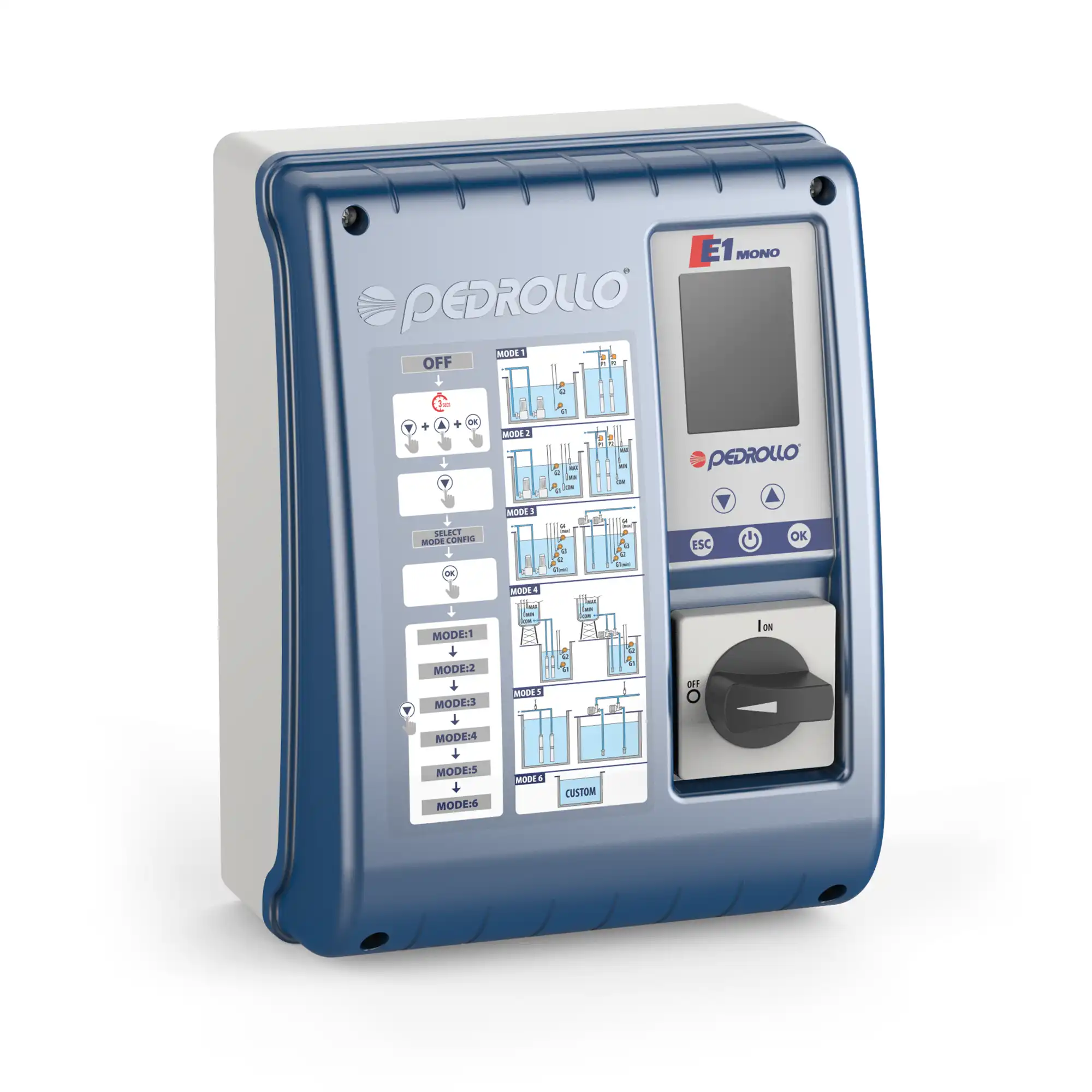

Pedrollo E1 - E2 Electronic Control Panels For Pumps
E1/E2 are multifunctional electronic control panels designed to manage one or two pumps in residential, commercial, or industrial settings. Thanks to their versatility, they provide protection and facilitate operations such as pressurization, filling, drainage, and emptying, accommodating both clean and waste water applications.
Product Description
E1/E2 electronic control panels offer unmatched ad-aptability for various systems by featuring six selectable operating modes. These modes facilitate comprehensive pump management and protection through both analogue and digital inputs, alongside electrical parameter monitoring. Equipped with an intuitive keypad and LCD display, the panels simplify programming and configuration of pump settings, protections, and operational modes through a user-friendly guided process.
These panels feature dry-running protection, managed through power factor (cosφ), current control, or by activating a float or level probe. The integrated self-learning Wizard simplifies the system initialization by automatically storing key electrical parameter values, ensuring a quick and straightforward setup.
When managing two pumps, the E2 panel automatically switches between them, reducing wear and maximizing efficiency in theit operation.
Main Features
Power supply:
1~ 230V±15% (E1/E2 MONO)
3~400V±15% (E1/E2 TRI)
Frequency: 50/60 Hz
- Door lock main isolating switch,
- Motor and auxiliary circuit protection fuse
- ABS outer container
- IP55 protection degree
- Ambient temperature: -5 °C ÷ +40 °C
- Relative humidity 50% at 40 °C
Inputs
E1/E2 electronic control panels allow pumps to be managed via analogue and digital inputs:
- Pressure switches
- Floats
- Remote contacts
- Run/stop floats
- Level probes
- Pressure transducers
Controls
- Minimum and maximum operating current control
- Minimum and maximum supply voltage control
- Input phase failure or inversion contro
