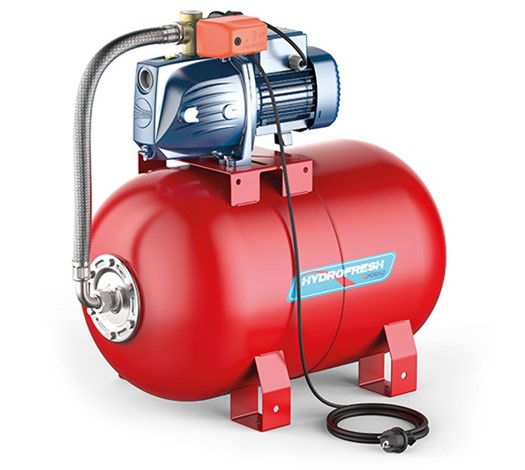

Pedrollo Hydrofresh Pressure Set
2 Year Manufacturers Warranty
Wetted Components| Pump Body | Various, Consult PDF Below |
| Impellor Case | Various, Consult PDF Below |
| Impellor Case Seal | NBR |
| Motor Shaft Seal | NBR |
| Vanes | Not Present |
| Vane Springs | Not Present |
| Rotor / Gear / Impellor | Various, Consult PDF Below |
| Shaft Key / Nut | Stainless Steel 304 |
| Motor Shaft | Stainless Steel 304 |
| Bypass Valve Piston | Not Present |
| Bypass Valve Spring | Not Present |
Performance| Voltage / Frequency | 50Hz |
| kW | 0.37 - 1.1 |
| Amps | Various, Consult PDF Below |
| RPM | 2900 |
| Duty Cycle | Continuous |
| Cable Length | None |
| Bypass Valve Y/N | N |
| Max Flow | 32 - 90 lpm |
| Discharge Pressure | 4.0 Bar |
| Max Suction Lift (Dry) | None |
| Max Suction Lift (Wet) | Various, Consult PDF Below |
| Inlet Fitting | Various, Consult PDF Below |
| Outlet Fitting | Various, Consult PDF Below |
| Max Particle Tolerance | Sand |
| Max Liquid Temp | +40 C |
| Min Liquid Temp |
| Max Room Temp | |
| Min Room Temp | |
| Thermal Protection Y/N | Y |
| Ingress Protection | IP44 |
Options Available| Pedrollo Part Number | Model |
| N41PNK60A1 | PKm 60-05 VT |
| N46JSNP1AA1 | JSWm1AX-N-05VT |
| N46JSNP1CA1 | JSWm1CX-N-05VT |
| H41PNK60A1P | PKm 60-24 SF |
| H41PNK67A1P | PKm 65-24 SF |
| H46JSNP1AA1P | JSWm1AX-N-24SF |
| H46JSNP1BA1P | JSWm1BX-N-24SF |
| H46JSNP1AA1P | JSWm1CX-N-24SF |
| H46JSNP7A15A1P | JSWm2AX-24SF |
| H46JSNP7A12A1P | JSWm2BX-24SF |
| H46JSNP7A10A1P | JSWm2CX-24SF |
| L46JSNP7A15A1P | JSWm2AX-60CL |
| L46JSNP7A12A1P | JSWm2BX-60CL |
| L46JSNP7A10A1P | JSWm2CX-60CL |
| I44CI16A1P | CPm 158-24 CL |
| I44CM17A1P | CPm 170-24 CL |
| I41PNK60A1P | PKm 60-24 CL |
| I41PNK67A1P | PKm65-24 CL |
| I46JCN1A0A1P | JCRm 1A-N-24CL |
| I46JCN1B0A1P | JCRm 1B-N-24CL |
| I46JCR2A15A1P | JCRm2A-24CL |
| I46JCR2A10A1P | JCRm2C-24 CL |
| I46JSNP1AA1P | JSWm1AX-N-24CL |
| I46JSNP1BA1P | JSWm1BX-N-24CL |
| I46JSNP7A15A1P | JSWm2AX-24 CL |
| I46JSNP7A12A1P | JSWm2BX-24 CL |
| I46JSNP7A10A1P | JSWm2CX-24 CL |
Shown Below, Hydrofresh 05 VT
Shown Below, Hydrofresh 24 SF
Shown Below, Hydrofresh 24 CL
Shown Below, Hydrofresh 60 CL
For 110v 50Hz, and 60Hz motors please email us for availability and price.
Download Pedrollo Hydrofresh, 50Hz PDF
Download Pedrollo Hydrofresh, 60Hz PDF
