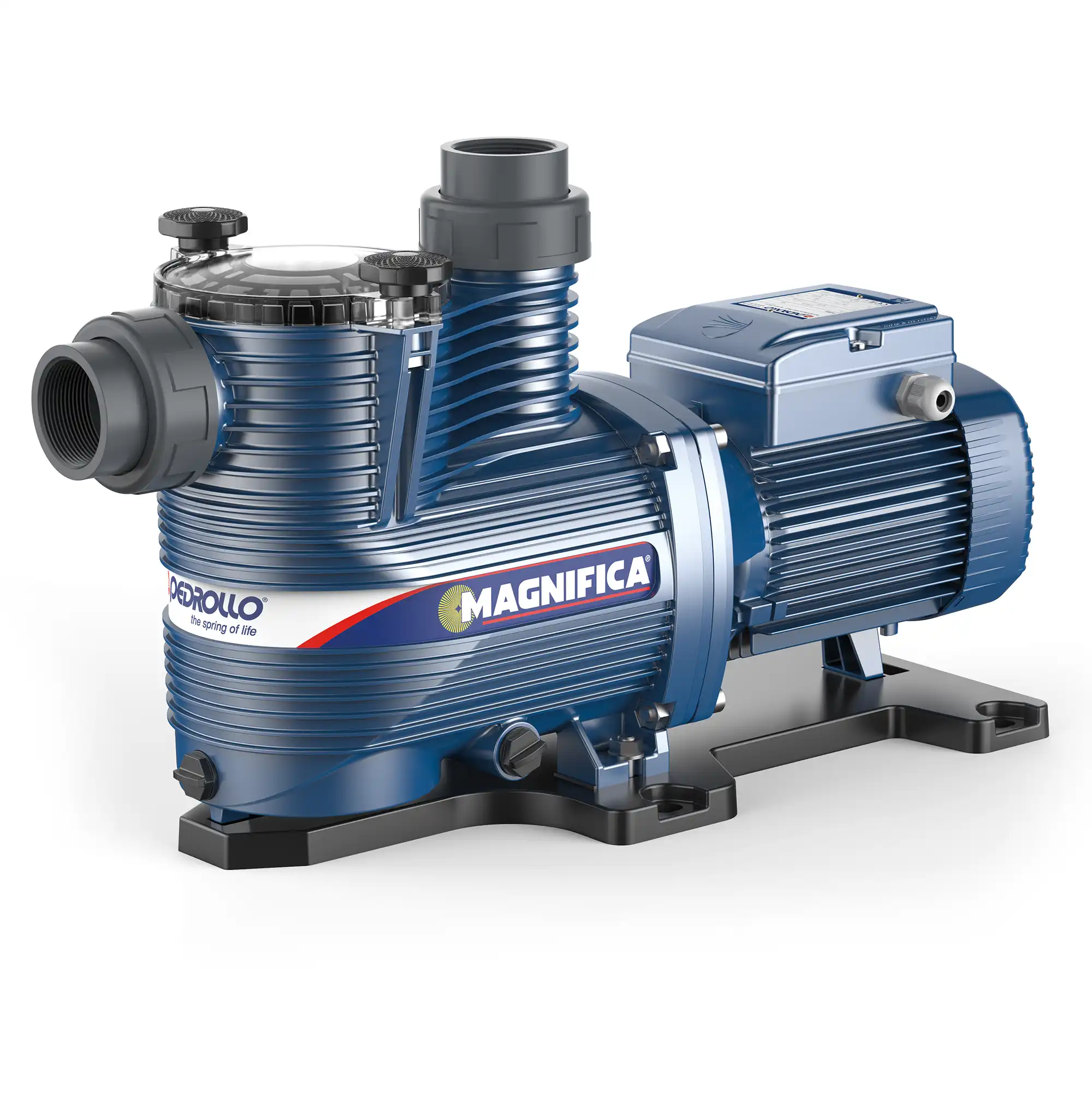

Pedrollo Magnifica Self Priming Swimming Pool Pump
- Robust electric pumps constructed with high-quality components and thick materials for extended durability and quiet operation.
- High water flow rate paired with low energy consumption.
- Double insulation between the pump and electric motor ensures maximum safety, with the pump/motor shaft always insulated from water.
- Pre-filter equipped with a transparent cover for easy visual inspection, featuring an extra-large filter basket to reduce cleaning frequency.
- High resistance to heat, chemicals, and salt corrosion.
- Supplied with 2" GAS threaded ISO 228/1 connection fittings and AISI 316 screws.
Performance Range
• Flow rate up to 700 l/min (42 m3/h)
• Head up to 23 m
Installation And Use
Self-priming pump with a built in filter designed for water circulation in residential swimming pools up to 180 m3.
Application Limits
• Swimming pool water (pH 6.5 8.4)
• Manometric suction head up to 4 m (HS)
• Liquid temperature up to +45 °C • Ambient temperature up to +50 °C
• Maximum working pressure 2.5 bar
Electric Motor
The three-phase pumps are equipped with newly developed electric motors designed to work with inverters, which guarantee stable and quiet operation. Efficiency class IE3 for three-phase motors, IE2 for single-phase motors, class F insulation and IP55 protection.
Available Upon Request
- Different voltage requirements 60 Hz frequency
- Smooth connection fitting 63mm
- Smoothconnection fitting 2" BS
- Threaded connection fitting 2"
Wetted Components| Pump Body | Cast Iron (Painted) |
| Impellor Case | Cast Iron (Painted) |
| Impellor Case Seal | NBR |
| Motor Shaft Seal | NBR |
| Vanes | Not Present |
| Vane Springs | Not Present |
| Rotor / Gear / Impellor | Brass |
| Shaft Key / Nut | 304 Stainless Steel |
| Motor Shaft | 304 Stainless Steel |
| Bypass Valve Piston | Not Present |
| Bypass Valve Seal | Not Present |
| Bypass Valve Spring | Not Present |
Performance| Voltage / Frequency | 110v, 230v, 415v / 50Hz |
| kW | 0.37-2.2 |
| Amps | |
| RPM | 2900 |
| Duty Cycle | Continuous |
| Cable Length | Not Present |
| Bypass Valve Y/N | N |
| Max Flow | 40 lpm @ 5 m head |
| Discharge Pressure | 9.0 Bar / 130.5 PSI |
| Max Suction Lift (Dry) | None |
| Max Suction Lift (Wet) | 8 m |
| Inlet Fitting | Various, Consult PDF Below |
| Outlet Fitting | Various, Consult PDF Below |
| Max Particle Tolerance | 100 Micron |
| Max Liquid Temp | 90 Celcius |
| Min Liquid Temp | |
| Max Room Temp | 40 Celcius |
| Min Room Temp | |
| Thermal Protection Y/N | Y |
| Max Liquid Viscosity | Water |
| Ingress Protection | IP44 |
For 110v 50Hz, and 60Hz motors please email us for availability and price.
