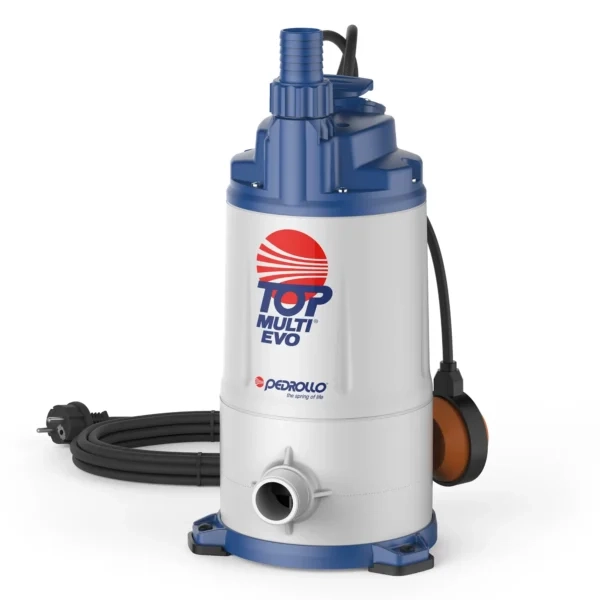

Pedrollo Top Multi Evo Submersible Multi-Stage Pump for Clear Water
  • Click to enlarge

Pedrollo Top Multi Evo Submersible Multi-Stage Pump for Clear Water

TOP MULTI-EVO pumps are recommended for pumping clean water and liquids that are not chemically aggressive for the materials from which the pump is made.

Because of their high efficiency and reliability they are suitable for use in applications such as domestic water supply from reservoirs, tanks or relatively deep wells, for drawing rain water from cisterns to water gardens or for use in irrigation systems, etc.

Features

  • Liquid type:Clean water
  • Uses: Domestic, Civil
  • Applications: Water supply systems, pressure systems, irrigation pumps
  • Typology: Submersible
  • Family: Multistage submersible pumps
  • Flow rate up to: 120 l/min (7,2 m³/h)
  • Head up to: 42 m
  • Temperature of the liquid to: +40 °C
  • Immersion depth max: 10m (with a sufficiently long power cable)
  • Suction down to: 52 mm above ground level
  • Continuous service S1
Options Available
Single PhasekWHPlpmHead
TOP MULTI 1 EVO0.370.506 - 2575 - 10
TOP MULTI 2 EVO0.550.7510-8040-5
TOP MULTI 3 EVO0.550.7510-12032-4
TOP MULTI 4 EVO0.7518 - 5080 - 10
TOP MULTI 5 EVO0.7516 - 40120 - 10

Download Pedrollo Top Multi Evo 50Hz PDFDownload Pedrollo Top Multi Evo 50Hz PDF

Download Pedrollo Top Multi Evo 60Hz PDFDownload Pedrollo Top Multi Evo 60Hz PDF

Product Options

£235.00


Product CodePEDR3XZR71
ConditionNew
