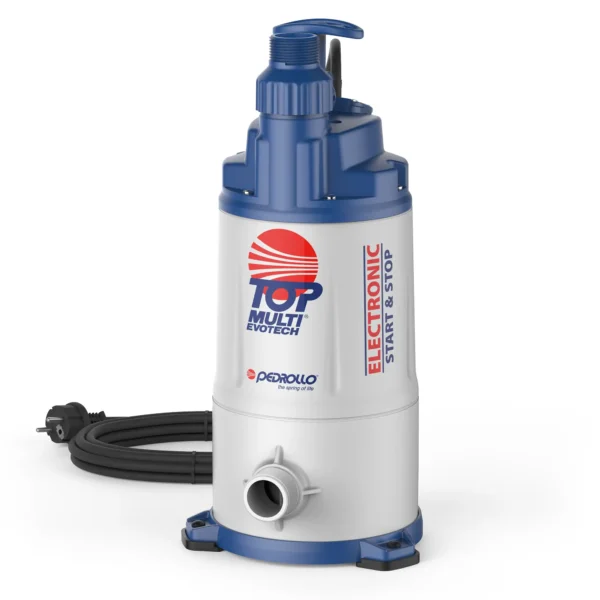

Pedrollo Top Multi Evotech Multi-stage Automatic Submersible Pump for Clear Water
TOP MULTI EVOTECH pumps are recommended for pumping clean water and liquids that are not chemically aggressive for the materials from which the pump is made.
Because of their high efficiency and reliability they are suitable for use in applications such as domestic water supply from reservoirs, tanks or relatively deep wells, for drawing rain water from cisterns to water gardens or for use in irrigation systems, etc.
An internal electronic device starts or stops the pump automatically when the tap is opened or closed.
Features
- Liquid type: Clean water
- Uses: Domestic, civil
- Applications:Water supply systems, pressure systems, irrigation pumps
- Typology: Submersible
- Family: Multistage submersible pumps
- Flow rate up to: 120 l/min (7,2 m³/h)
- Head up to: 42 m
- Temperature of the liquid to: +40 °C
- Maximum immersion depth: 5m
- Maximum height between pump and point of use: 10 m
- Suction down to: 52 mm above ground level
- Continuous service S1
Options Available| Single Phase | kW | HP | lpm | Head |
| TOP MULTI EVOTECH 2 | 0.55 | 0.75 | 10-80 | 40-5 |
| TOP MULTI EVOTECH 3 | 0.55 | 0.75 | 10-120 | 32-4 |
Download Pedrollo Top Multi Evotech 50Hz PDF
Download Pedrollo Top Multi Evotech 60Hz PDF
