Pedrollo Top Multi, Submersible Pump
  • Click to enlarge

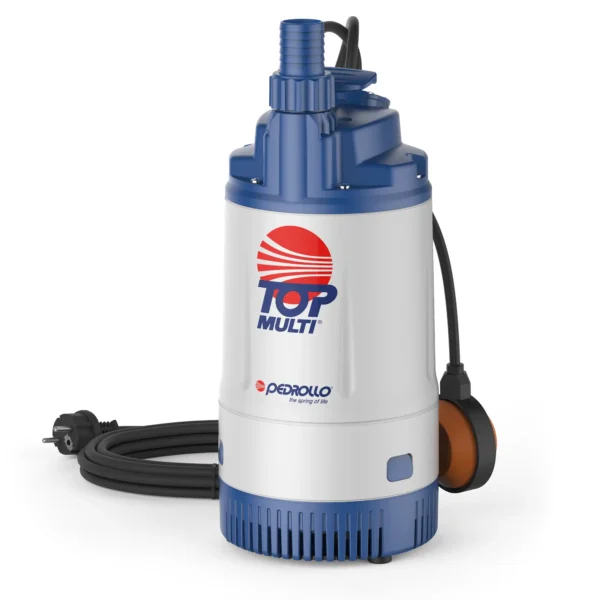

Pedrollo Top Multi, Submersible Pump

As a result of their high efficiency and reliability they are suitable for use in applications such as domestic water supply from reservoirs, tanks or relatively deep wells, for drawing rain water from cisterns to water gardens or for use in irrigation systems, etc.

Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.

Wetted Components
Pump BodyGlass Fibre
Impellor CaseGlass Fibre
Impellor Case SealNBR
Motor Shaft SealNBR
VanesNot Present
Vane SpringsNot Present
Rotor / Gear / ImpellorNoryl GFN2V
Shaft Key / NutStainless Steel 304
Motor ShaftStainless Steel 304
Bypass Valve PistonNot Present
Bypass Valve SpringNot Present
Performance
Voltage / Frequency50Hz
kW0.55
AmpsVarious, Consult PDF Below
RPM2900
Duty CycleContinuous
Cable LengthTBC
Bypass Valve Y/NN
Max Flow120 lpm
Discharge Pressure4 Bar
Max Suction Lift (Dry)NA
Max Suction Lift (Wet)Submerged
Inlet FittingNA
Outlet Fitting
Max Particle Tolerance1.3mm
Max Liquid Temp+40C
Min Liquid Temp
Max Room Temp
Min Room Temp
Thermal Protection Y/NY
Ingress ProtectionIPX8
Options Available
ModelkWHpHead (m)l/min
TOP MULTI 10.370.506 - 2575 - 10
TOP MULTI 20.550.755 - 4280 - 10
TOP MULTI 30.550.754 - 33120 - 10
TOP MULTI 40.7518 - 5080 - 10
TOP MULTI 50.7516 - 40120 - 10

For 110v 50Hz, and 60Hz motors please email us for availability and price.

Download Pedrollo Top Multi - 50HZ PDFDownload Pedrollo Top Multi - 50Hz PDF

Download Pedrollo Top Multi - 60Hz PDFDownload Pedrollo Top Multi - 60HZ PDF
