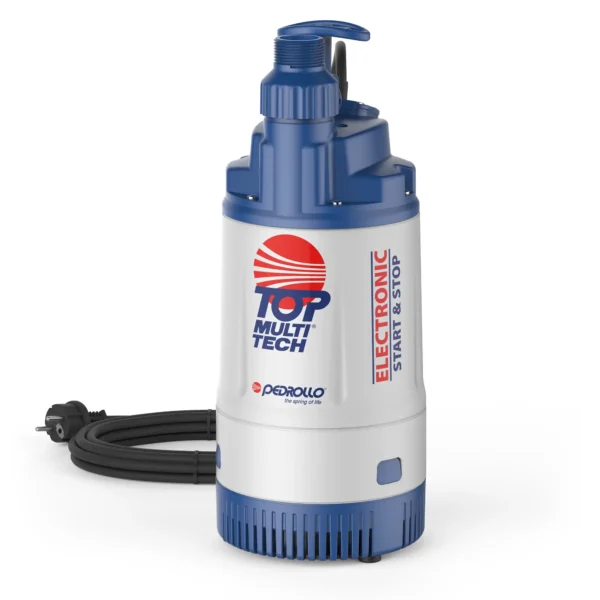

Pedrollo Top Multi-Tech Submersible Pumps
  • Click to enlarge

Pedrollo Top Multi-Tech Submersible Pumps for Clear Water

The Top Multi-Tech pumps are recommended for pumping clean water and liquids that are chemically non aggressive to the pump materials.

For the high performance and reliability are suitable for domestic water supply from tanks, relatively deep wells, and tanks to collect rainwater for watering by hand or feeding a irrigation systems, etc.

2 Year Manufacturers Warranty

Wetted Components
Pump BodyTechnopolymer
Impellor CaseNoryl FE1520PW
Impellor Case SealNBR
Motor Shaft SealNBR
VanesNot Present
Vane SpringsNot Present
Rotor / Gear / ImpellorTBC
Shaft Key / NutStainless Steel 304
Motor ShaftStainless Steel 304
Bypass Valve PistonNot Present
Bypass Valve SpringNot Present
Voltage / Frequency50Hz
AmpsVarious, Consult PDF Below
Duty CycleContinuous
Cable Length10 m
Bypass Valve Y/NTBC
Max Flow120 lpm
Discharge Pressure4.0 Bar
Max Suction Lift (Dry)None
Max Suction Lift (Wet)Submerged
Inlet FittingNA
Outlet Fitting1.25"
Max Particle ToleranceSand
Max Liquid Temp+40 C
Min Liquid Temp
Max Room Temp
Min Room Temp
Thermal Protection Y/NY
Ingress ProtectionIPX8
Options Available
ModelCable LengthkWHPlpmHead (m)
TOP MULTI TECH 210m0.550.7510 - 805 - 40
TOP MULTI TECH 310m0.550.7510- 1204 - 32
TOP MULTI TECH 410m0.7518 - 5080 - 10
TOP MULTI TECH 510m0.7516 - 40120 - 10

For 110v 50Hz motors please email us for availability and price.

Download Pedrollo Top-Multi-Tech, 50Hz PDFDownload Pedrollo Top-Multi-Tech, 50Hz PDF

Download Pedrollo Top-Multi-Tech, 60Hz PDFDownload Pedrollo Top-Multi-Tech, 60Hz PDF

Download Pedrollo Top-Multi-Tech, Intended Uses PDFDownload Pedrollo Top-Multi-Tech, Intended Uses PDF
