Pedrollo VXC-F Vortex Fixed Pumps for Sewage
  • Click to enlarge

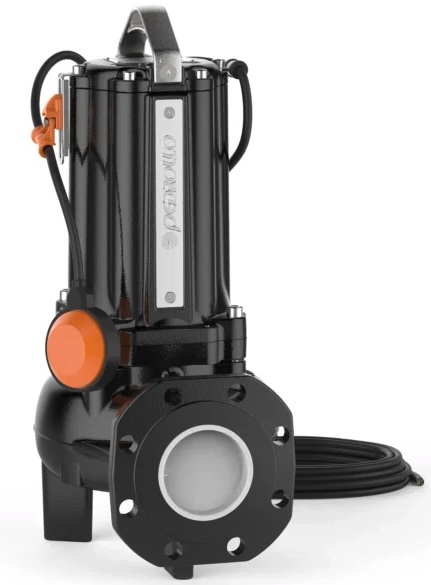

Pedrollo VXC-F Vortex Fixed Pumps for Sewage

VXC-F series pumps, made from heavy gauge cast iron offering exceptional sturdiness, abrasion resistance and durability, come equipped with a VORTEX impeller and are therefore suitable for draining waste water, water mixed with mud, liquids containing air or gas, as well as sludge.

They are suitable for use in fixed sewer, tunnel, well and underground car park installations.

NOTE: The design of this range of pumps has changed from the original PVXC and PMC pumps, on VXC-F and MC-F pumps the "Claw" is no longer part of the pump and needs to be ordered separately, please refer to attached PDF data sheet showing the different fitting kits available for VXC-F and MC-F to enable them to be coupled with existing pipework from PVXC and PMC. We will need to obtain pricing for the kit/s you require, so email us if you need any of these parts.

2 Year Maufacturers Warranty

Wetted Components
Pump BodyCast Iron
Impellor CaseCast Iron
Impellor Case SealNBR
Motor Shaft SealNBR
VanesNot Present
Vane SpringsNot Present
Rotor / Gear / ImpellorStainless Steel 304
Shaft Key / NutStainless Steel 304
Motor ShaftStainless Steel 304
Bypass Valve PistonNot Present
Bypass Valve SpringNot Present
Voltage / Frequency50Hz
kWVarious, Consult PDF Below
AmpsVarious, Consult PDF Below
Duty CycleContinuous
Cable LengthTBC
Bypass Valve Y/NN
Max Flow1200 l/min
Discharge Pressure1.6 Bar
Max Suction Lift (Dry)None
Max Suction Lift (Wet)Submersed
Inlet FittingNA
Outlet Fitting2.5" for VXC-F 15-20-30/50, 3" for VXC-F 15-20-30/70
Max Particle Tolerance50 mm for VXC-F 15-20-30/50, 70 mm for VXC-F 15-20-30/70
Max Liquid Temp+40C
Min Liquid Temp
Max Room Temp
Min Room Temp
Thermal Protection Y/NY
Ingress ProtectionIPX8
Options Available
Single-PhaseThree-PhasePedrollo Part NumberkWlpmHead (m)
VXCm 15/50-F 48SGX93C0A11.1100 - 6002 - 10.5
 VXC 15/50-F48SGX93C0A 100 - 6002 - 10.5
VXCm 20/50-F 48SGX93B0A11.5100 - 7002 - 12
 VXC 20/50-F48SGX93B0A 100 - 7002 - 12.5
VXCm 30/50-F 48SGX93A0A12.2100 - 8502 - 15
 VXC 30/50-F48SGX93A0A 100 - 8502 - 15
VXCm 15/70-F 48SGX947CA11.1100 - 8501 - 5.5
 VXC 20/70-F48SGX947BA 100 - 8501 - 5.5
VXCm 20/70-F 48SGX947BA11.5100 - 10001 - 7.4
 VXC 20/70-F48SGX947BA 100 - 10001 - 7.4
VXCm 30/70-F 48SGX947AA12.2100 - 12001.5 - 9.7
 VXC 30/70-F48SGX947AA 100 - 12001.5 - 9.7

Download Pedrollo VXC-F 50Hz PDFDownload Pedrollo VXC-F 50Hz PDF

Download Pedrollo Kitpiede for VXC-F PDFDownload Pedrollo Kitpiede for VXC-F PDF
