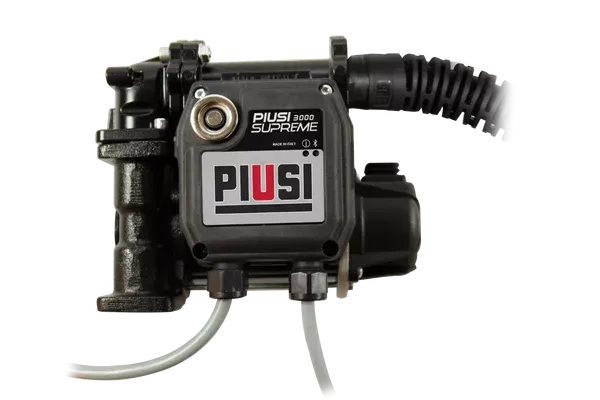

Piusi Supreme 3000 12/24v Diesel Pump
The PIUSI 3000 SUPREME is a highly innovative device designed to offer full pump control and management from a smartphone app, thus helping users fill up with diesel from mobile tanks quickly and safely.
This new pump combines new digital technologies with PIUSI’s long and proven track-record in the design of fluid management systems such as pumps and flow meters. The pump is designed to dispense diesel, measure the volume dispensed, manage operator access and solve the problems typically faced by users of transportable tanks. EASY TO INSTALL, EVEN EASIER TO USE The PIUSI 3000 SUPREME is a compact, self-priming, vane pump with a flow rate of up to 50 L/min. Its compact design makes it easy to install on any type of tank. With its lean, modern, analytical operation, the PIUSI 3000 SUPREME makes everyday work more efficient, more secure and more versatile. For more complex systems, the SUPREME can be integrated with the B.SMART management system, making it possible to connect and manage multiple pumps together, for integrated control of all your company’s systems.
Wetted Components| Pump Body | Cast Iron |
| Impellor Case | Cast Iron |
| Impellor Case Seal | NBR |
| Motor Shaft Seal | NBR |
| Vanes | Acetyl Resin |
| Vane Springs | Not Present |
| Rotor / Gear / Impellor | Sintered Steel |
| Shaft Key / Nut | Steel |
| Motor Shaft | Steel |
| Bypass Valve Piston | Acetyl Resin |
| Bypass Valve Seal | NBR |
| Bypass Valve Spring | Stainless Steel |
Performance| Piusi Part Number | FOO25OHOO | FOO25OVOO | FOO25ODOO | FOO25OKOO | FOO25OD1O |
| Voltage / Frequency | From 12 to 24 | From 12 to 24 | From 12 to 24 | From 12 to 24 | From 12 to 24 |
| kW | 200W | 200W | 200W | 200W | 200W |
| Amps | 16A/8A | 16A/8A | 16A/8A | 16A/8A | 16A/8A |
| RPM | 2700 | 2700 | 2700 | 2700 | 2700 |
| Duty Cycle | Yes | Yes | Yes | Yes | Yes |
| Hose Length | - | - | - | 4MT 3/4" | 4MT 3/4" |
| Bypass Valve Y/N | | | | | |
| Max Flow (Open) | 50 lpm | 50 lpm | 50 lpm | 50 lpm | 50 lpm |
| Discharge Pressure | | | | | |
| Max Suction Lift (Dry) | | | | | |
| Max Suction Lift (Wet) | | | | | |
| Inlet Fitting | | | | | |
| Outlet Fitting | | | | | |
| Max Particle Tolerance | | | | | |
| Max Liquid Temp | | | | | |
| Min Liquid Temp | | | | | |
| Max Room Temp | | | | | |
| Min Room Temp | | | | | |
| Thermal Protection Y/N | | | | | |
| Max Liquid Viscosity | | | | | |
| Ingress Protection | | | | | |
| Weight | | | | | |
Shown below, special fittings from Piusi (Optional Extras listed in options below);
Shown below, software interface with on board memory;
