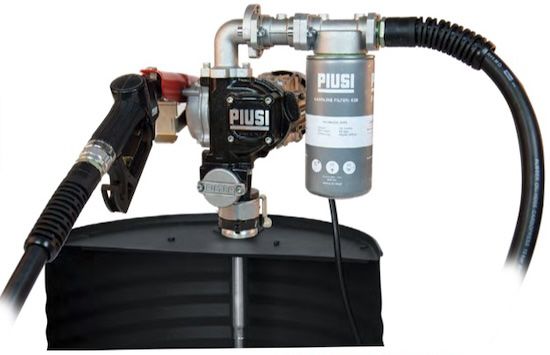

Piusi Panther EX 56 Drum, Vane Pump Drum Kit, ATEX Approved
For full product details refer to the below Piusi PDF downloads or Piusi.com
Suitable for:
- Diesel
- Kerosene
- Petrol
- Petrol + 15% Ethanol
ATEX Designation: II 2 G Ex d IIA T4 Gb
Specifications| Piusi Part Number | F00582000 |
| Piusi Description | Panther EX 56 Drum 230V ATEX + Auto Nozzle |
| Utilises Piusi Pump | Piusi Panther EX 56 |
| Utilises Piusi Nozzle | Piusi A60 ATEX |
| Utilises Piusi Flow Meter | None |
| Utilises Piusi Filter | Piusi Gasoline Filter E25 ATEX |
| Voltage / Frequency | 230vAC 50Hz (EU) |
| Maximum Users | NA |
| kW | 0.5 |
| Amps | 2.3 |
| Hose Length | 4 m |
| Hose ID | 3/4" |
| Bypass Valve Y/N | Y |
| Max Flow | 56 lpm |
| Discharge Pressure | 1.6 Bar |
| Max Suction Lift (Dry) | 1.1 m |
| Max Suction Lift (Wet) | 1.1 m |
| Inlet Fitting | 1" BSP |
| Outlet Fitting | 1" BSP |
| Max Particle Tolerance | 100 Micron |
| Thermal Protection Y/N | Y |
| Max Liquid Viscosity | Diesel |
| Ingress Protection | IP55 |
| Weight | 18.3 Kg |
| Accuracy | N/A |
Download Piusi Panther EX 56 Drum - Brochure PDF
Download Piusi Panther EX 56 Drum - ATEX Certificate PDF
