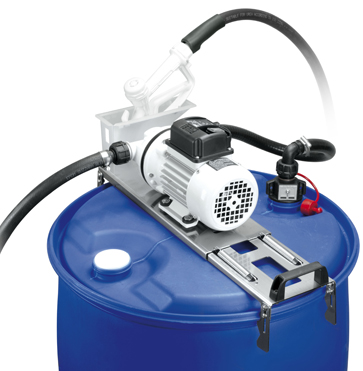

Piusi Suzzarablue Drum, AC Diaphragm Pump, for Adblue / Urea
The Piusi Suzzara Blue Electric AdBlue™ Drum Pump is designed for the dispensing of AdBlue™ (DEF) specifically from a drum. Thanks to its spring-loaded Stainless Steel plate, this Adblue™ transfer pump can be securely top mounted onto a drum, ensuring protection against any accidental impact that otherwise could knock the pump off the drum and cause damage.
Complete with delivery hose, manual nozzle, suction downtube and AF2 Trisure drum connector, this electric AdBlue™ pump can be easily disconnected and moved between AdBlue™ drums as a ready to dispense kit. It also benefits from an anti-drip nozzle holster for the clean storage of the nozzle when refilling has finished.
Features of the Suzzara Blue Drum AdBlue™ Transfer Pump Kit:
- Self priming membrane AdBlue™ pump
- Stainless steel mounting plate
- Flow rate: 32ltr Per Min
- Manual nozzle c/w nozzle support
- 6m delivery hose & suction hose
- AF2 Trisure connector c/w 3 part downtube
- Protection Grade: IP55
- Available in 230v
Self priming, and capable of delivering 34 lpm with a maximum output pressure of 1.6 Bar. This pump is also suitable for dispensing Adblue through an Automatic Nozzle
Wetted Components| Pump Body | Polypropylene |
| Diaphragms | Viton |
| Diaphragm Valves | TPU |
| Motor Shaft | Sintered (Stainless) Steel |
Performance| Part Number | F0020135E | CTSX00000395 | F00201D5C | F00201E5C |
| Voltage | 230vAC 50HZ (EU) | 110VAC 50HZ (EU) | 230vAC 50HZ (EU) | 230vAC 50HZ (EU) |
| Nozzle Included | Manual | Manual | Automatic SB325 | Automatic SB325 |
| Max Suction Lift | 3 m | 3 m | 3 m | 3 m |
| Max Flow | 32 lpm | 32 lpm | 32 lpm | 32 lpm |
| Outlet Pressure | 1.6 Bar | 1.6 Bar | 1.6 Bar | 1.6 Bar |
| Max Viscosity | Adblue | Adblue | Adblue | Adblue |
| Internal Bypass | No | No | No | No |
| Adjustable Bypass | No | No | No | No |
| Power Kw | 0.40 | | 0.40 | 0.40 |
| RPM | 1400 | 1400 | 1450 | 1450 |
| Max Liquid Temp | 55° | 55° | 55° | 55° |
| Max Room Temp | 40° | 40° | 40° | 40° |
| Ingress Protection | IP55 | IP55 | IP55 | IP55 |
| Ports - Viscomat | 3/4 BSP Male, CW 19mm Male Hose Barbs | 3/4" BSP Male, CW 19mm Male Hose Barbs | 3/4" BSP Male, CW 19mm Male Hose Barbs | 3/4" BSP Male, CW 19mm Male Hose Barbs |
| Weight | 16 kg | 16 kg | 16 kg | 16 Kg |
Download Piusi Suzzarablue Drum Pumps AC PDF
