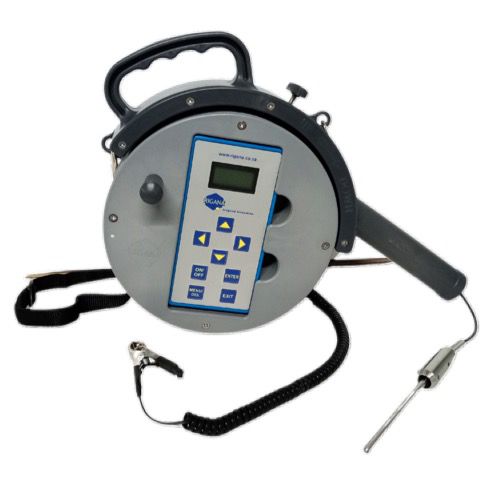

Rigana Digital Temperature Reader

Rigana’s RTR is an intrinsically safe digital gauging depth thermometer, designed for use in hazardous locations.

Key Features

Intrinsically safe
User-Friendly design
Lightweight and durable
The RTR has an automatic depth reader which visually displays the depth at which each reading is recorded.
The unit can be plugged into a pc/laptop via USB for easy data transfer, this eliminates human error as there is no need to manually capture the data
Backlight feature
RS Pro rechargeable battery
The RTR can store data on up to 50 tanks. 1500 readings in total
Temperature can be measured in centigrade and fahrenheit
Depth can be measured in metres and feet

Key Advantages

Hazardous Environmental Approval

Metrolology Approval Portable Electronic Thermometer:

ATEX: ExiallB T4 Ga

IA Certificate No: S-XPL/190767 X

ATEX: (II 1G Ex ia IIB T4 Ga)

ATEX EU Certificate No: TUV 23 ATEX 9044 X

**Specifications**
Measurement Range	-40 C to 163 C (-40 F to 325 F)
Ambient Temperature Range	-10 C to 40 C (14 F to 104 F)
Resolution	0.1 C or 0.01 C Selectable
Temperature Scale	Centrigrade or Fahrenheit
Temperature Accuracy
- 40 C to 30 C	± 0.25 C
- 30 C to +100 C	± 0.1 C
- 40 C to +163 C	.± 0.25 C
Repeatability
-40 C to 163 C	0.1 C
Calibration	Digital One Point 0 C
Memory	50 Tanks, each 30 readings
Display	LCD 2 lines x 4 Characters each
Power	Rechargeable encapsulated RS PRO 9v battery
Battery Saving	Auto Shut Off
Low Battery Indication	By percentage of the battery level
Rechargebale Battery Life	Approx 50 Hours
Overall Dimension of Reader	90 mm x 166 mm x 31 mm
Weight of RTR Blue Box	286 gram
Instrument Protection	IP 54
RTR Blue Box	Dedicated Nylon 66 box
Temperature Sensor	30 m PT1000 with Lumberg SV-80-8 Plug
Gross Weight	2.7 kgs
Reel	Nylon 66
Bearings	Stainless Steel

Product Code	Rigana_RTR
