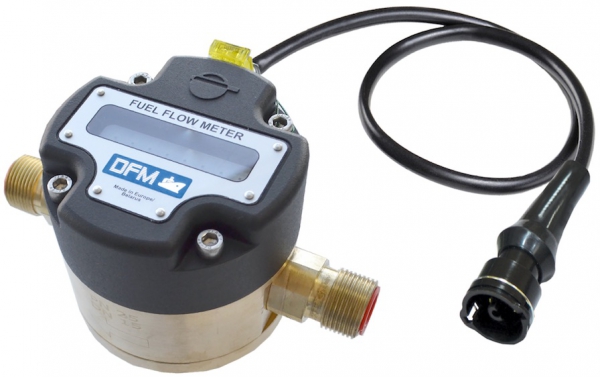

Technoton DFM Digital LCD Fuel Meter, With Pulse-Out for Marine Engine Fuel Consumption, Brass, Threaded
  • Click to enlarge

Technoton DFM Digital LCD Fuel Meter, With Pulse-Out for Marine Engine Fuel Consumption, Brass, Threaded

Excellent quality, Digital, Engine Fuel Consumption Meters, for monitoring engine fuel usage. All models are complete with an engine hours total, which accumulates on the basis that the engine is running whilst fuel is passing through the meter, these meters are also supplied with a magnetic key which allows the user to switch between the screens without there having to be a tactile switch

Suitable for all fuel oils, providing the fuel is clean, can be used with;

  • Diesel fuel
  • Heating oil
  • Burner oil
  • Motor fuel
  • Biofuel
  • Other liquid fuels and mineral oils with kinematic viscosity of 1.5 to 6.0 mm2/s.

2 Different types of signal output (denoted by suffix):

  • K - Pulse - Normalised
  • CAN - CAN 2.0B Interface

Powered by the vehicles power supply (battery), suitable for 12vDC or 24vDC systems, with a voltage tolerance of 10 to 50 vDC

3 Models available to suit different engine fuel consumption rates, referring to your vehicle manual should give some indication as to the likely flow range required

General Specification
Operating Temperatures-20 to +80 °c
Temperature / Density CompensationYes
Voltage10-50 vDC, Protected up to 100v
Current Consumption50ma @ 12vDC, 25ma @ 24vDC
IP RatingIP 54
Output SignalPulse - Normalised or CAN2.0B Interface
Min / Max Kinematic Viscosity1.5-6.0 mm2/Sec / Centistokes
Nominal / Max Pressure2 to 25 Bar
Max Particle Tolerance250 Micron (DFM 1000) 400 Micron (DFM 2000 & 4000)
Fitting SizeConsult Chart Below
Pulse TypeConsult Chart Below
Models Available
 Flow RangeStarting FlowThread SpecificationAccuracy within flow rangePulses Per LitreLitres Per PulseType of Output
DFM 1000C K20 - 1000 LPH10 LPH3/4" Male GAS (ISO/BSPP)±0.5%33.3330.030Pulse, Normalised
DFM 1000C CAN20 - 1000 LPH10 LPH3/4" Male GAS (ISO/BSPP)±0.5%33.3330.030CAN 2.0B Interface
DFM 2000C K40 - 2000 LPH20 LPH1" Male GAS (ISO/BSPP)±0.5%13.3330.075Pulse, Normalised
DFM 2000C CAN40 - 2000 LPH20 LPH1" Male GAS (ISO/BSPP)±0.5%13.3330.075CAN 2.0B Interface
DFM 4000C K80 - 4000 LPH40 LPH1.25" Male GAS (ISO/BSPP)±0.5%6.6660.150Pulse, Normalised
DFM 4000C CAN80 - 4000 LPH40 LPH1.25" Male GAS (ISO/BSPP)±0.5%6.6660.150CAN 2.0B Interface

Shown Below, Digital Display, being switched between display screens using supplied magnetic key

Shown Below, Installation Diagram, Meter Fitted Before Pump (Less Accurate)

Shown Below, Installation Diagram, Meter After Pump (More Accurate)

Download Technoton DFM Marine Operation Manual (All Models) PDFDownload Technoton DFM Marine Operation Manual (All Models) PDF

Product Options

£1,059.80


Product CodeTECJEMDZ57
ConditionNew
